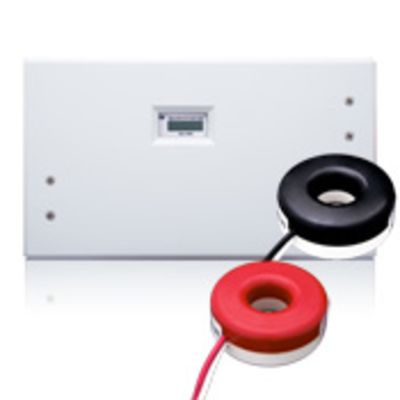

Leviton MK240-1SW
Dual Element Mini Meter Kit, Indoor Flush Mount Enclosure, LCD Counter,120/208/240 Volt, 100 Amp with Two Solid Core CTS
Supporting Information
- Measures kWh|Equipped standard with an isolated pulse output channel for automated meter reading|Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformer that conform to all applicable ANSI requirements or 1% accuracy split core current transformer|Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier|48 in L maximum current transformer lead|Load profiling and benchmarking, AMR/BAS/BMS/EMS integration, usage aggregation, tenant cost allocation, measurement and verification, energy conservation and cost reduction
- Measures kWh
- Equipped standard with an isolated pulse output channel for automated meter reading
- Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformer that conform to all applicable ANSI requirements or 1% accuracy split core current transformer
- Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
- 48 in L maximum current transformer lead
- Load profiling and benchmarking, AMR/BAS/BMS/EMS integration, usage aggregation, tenant cost allocation, measurement and verification, energy conservation and cost reduction
- Brand: LevitonAccuracy: 1Amperage Rating: 100Dimensions: 5.13 in L x 2.84 in W x 1.28 in HDisplay Type: LCDEnclosure Type: NEMA 1
