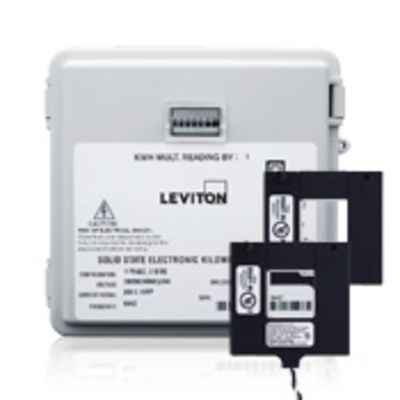

Leviton MO240-1W
Dual Element Mini Meter Kit, Outdoor Surface Mount Enclosure, LCD Counter, 120/208/240 Volt, 100 Amp with Two Split Core CTS
Supporting Information
- Measures kWh|Equipped standard with an isolated pulse output channel for automated meter reading|Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformer that conform to all applicable ANSI requirements or 1% accuracy split core current transformer|Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier|48 in L maximum current transformer lead|Load profiling and benchmarking, AMR/BAS/BMS/EMS integration, usage aggregation, tenant cost allocation, measurement and verification, energy conservation and cost reduction
- Measures kWh
- Equipped standard with an isolated pulse output channel for automated meter reading
- Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformer that conform to all applicable ANSI requirements or 1% accuracy split core current transformer
- Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
- 48 in L maximum current transformer lead
- Load profiling and benchmarking, AMR/BAS/BMS/EMS integration, usage aggregation, tenant cost allocation, measurement and verification, energy conservation and cost reduction
- Brand: LevitonAccuracy: 1Amperage Rating: 100Dimensions: 8.47 in L x 5.9 in W x 3.57 in HDisplay Type: LCDEnclosure Type: NEMA 4XFrequency Rating: 50/60
