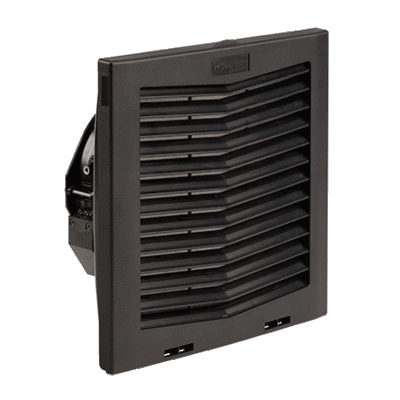

nVent Hoffman HF1016513
Hoffman Filter Fan, Series: MCLF, 115 VAC, 0.38/0.36 A, 35/32 W, 53/56 dB, 103 cfm, 2700/3200 rpm, Side Mount, ABS Grille, NEMA 12/IP55, 10.13 in H x 10.14 in W x 4.68 in D
Supporting Information
- Click-Fit design quickly installs into enclosure wall, no tools or screws required|Opens with the flick of a finger for easy filter replacement|Reverse airflow option on HF13 models available to push/pull air through higher static pressure|Standard rope gasket provides proper seal to the enclosure|Similar cut-out sizes as other filter fan manufacturers|Terminal block connections|Optional thermostat available to save energy and extend service life|Hinged grille remains attached after opening|Size rage from 4 in (102 mm) to 13 in (325 mm)
- Brand: nVent HoffmanAir Flow Rate: 103Amperage Rating: 0.38/0.36Dimensions: 10.13 in H x 10.14 in W x 4.68 in DEnclosure Type: NEMA 12/IP55Grille Material: ABSMounting Type: SidePower Rating: 35/32Series: MCLFSound Level: 53/56Speed: 2700/3200
