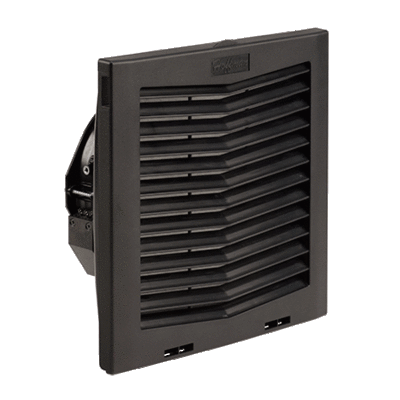

nVent Hoffman HF1024513

Hoffman HF1024513 MCLF Filter Fan, 24 VDC, 0.88 A, 21.1 W, 103 cfm, NEMA 12/IP55 Enclosure
Enclosure Box Hardware and Accessories
7583018 HF1024513
nVent Hoffman
$0.00 / ea

nVent Hoffman HF1024513
  • Air Flow Rate: 103
  • Amperage Rating: 0.88
  • Dimensions: 10.13 in H x 10.14 in W x 5.18 in D
  • Enclosure Type: NEMA 12/IP55
  • Grille Material: ABS
  • Mounting Type: Side
  • Power Rating: 21.1
  • Series: MCLF
  • Sound Level: 53/56
  • Speed: 3750
  • Voltage Rating: 24
Hoffman Filter Fan, Series: MCLF, 24 VDC, 0.88 A, 21.1 W, 53/56 dB, 103 cfm, 3750 rpm, Side Mount, ABS Grille, NEMA 12/IP55, 10.13 in H x 10.14 in W x 5.18 in D
QTY
Add to Wishlist
  • Features
  • Click fit design quickly installs into enclosure wall, no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cutout sizes as other filter fan manufacturers
  • Terminal block connections
  • Hinged grille remains attached after opening
