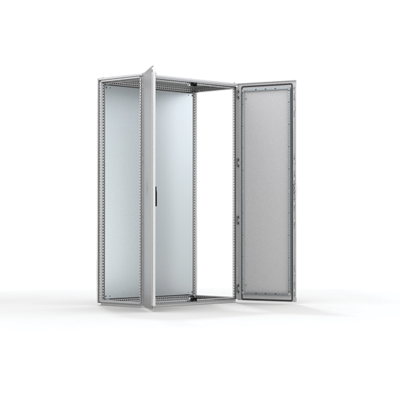

nVent Hoffman MCD20124R5
nVent HOFFMAN Modular Enclosure, Combinable Version Double Door, Series: MCD, 78.74 in Length, 47.24 in Width, 15-3/4 in Depth, NEMA 12/13 NEMA Rating, Hinged Cover, Lock: 4-Point Espagnolette, Floor Stand Mounting, 14/16 ga Mild Steel, Structured Powder Coated, Light Gray
Supporting Information
- Frame - Seam welded reversed open profiles with 25 mm hole pattern|Including integrated external hole pattern|Doors - Mounted with four hinges|Doors cannot be reversed|Separate doors to be ordered for left hand door locking|Standard facilities for rear doors mounting|Split rear panels in 1600 mm wide enclosures|RD version comes with rear door instead of rear panel|Side panels - Supplied as an accessory|Standard double-bit lock with 3 mm insert|Standard inserts, cylinders, lift handles and T-handles are available as accessories|Bottom plates - Consists of three or four (D greater than 600) pieces|Mounting plate - Double folded and slides into position|Adjustable in depth by steps of 25 mm, with the MPD02 accessory|Supplied, attached on the outside of the enclosure packaging|Earthing - All panels are earthed through their fittings and equipped with a separate earthing stud
- Brand: nVent HoffmanColor: Light GrayCover Type: HingedDepth: 15-3/4Finish: Structured Powder CoatedLength: 78.739999999999995Lock: 4-Point EspagnoletteMaterial: 14/16 ga Mild SteelMounting Type: Floor StandNema Rating: NEMA 12/13Series: MCD
