nVent Hoffman P2BP286

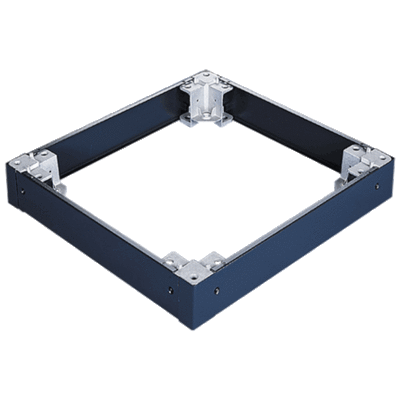

Hoffman Plinth Base, Fully Sealed, Series: P40, 200 mm H x 799 mm W x 564 mm D, For Use With: ProLine G2 800 x 600 mm Modular Enclosure Frame, Steel, Polyester Powder Coated, Black
Supporting Information
- Four access panels for cable management options at the base of the enclosure|Sturdy cast aluminum corner supports for superior performance under load|Drill points for locating casters|RAL 9005 textured black standard color|Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment|Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)|100 mm or 200 mm options|To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
- Four access panels for cable management options at the base of the enclosure
- Sturdy cast aluminum corner supports for superior performance under load
- Drill points for locating casters
- To maintain a NEMA 12 environmental rating, gland plate must also be used in the base of the enclosure
- RAL 9005 textured black standard color
- Brand: nVent HoffmanColor: BlackFinish: Polyester Powder CoatedMaterial: SteelSeries: P40Size: 200 mm H x 799 mm W x 564 mm DSuitable For Use With: ProLine™ G2 800 x 600 mm Modular Enclosure FrameType: Fully Sealed
