nVent Hoffman PDW56W16

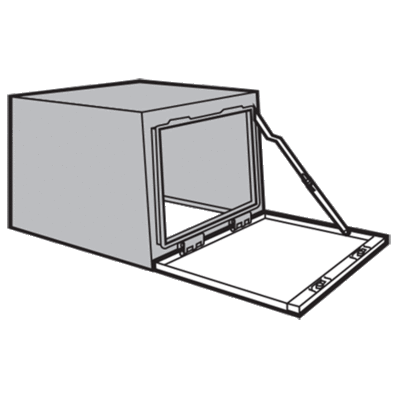

nVent HOFFMAN ProLine™ PDW56W16 P9 Upper Front Window Door, 23.3 in W x 0.87 in D, For Use With ProLine™ 600 mm W x 507/682 mm H Sloped Top Operator Interface Enclosures, Steel
Enclosure Box Hardware and Accessories
6886529 PDW56W16
nVent Hoffman
$0.00 / ea

nVent Hoffman PDW56W16
  • Depth: 0.87
  • Dimensions: 19.86 in H
  • Finish: Powder Coated
  • Material: Steel
  • Series: P9
  • Suitable For Use With: ProLine™ 600 mm W x 507/682 mm H Sloped Top Operator Interface Enclosures
  • Type: Upper Front
  • Width: 23.3
Window Small Door For ProLine Sloped Front, fits 507/682x600mm, Lt Gray, Steel
QTY
Add to Wishlist
  • Features
  • Finish is RAL 7035 textured light gray polyester powder paint or type 304 stainless steel
  • Doors are hinged at lower edge and have quarter turn latches
  • A stop arm assembly holds the door at 95 deg (horizontal) from its closed position
  • Seamless polyurethane foam in place gasket assures watertight and dust tight seal
  • Window doors feature a maximum size 0.25 in THK polycarbonate window with a smoke gray tint
  • Window is field replaceable
