nVent Hoffman PPC2088
nVent HOFFMAN ProLine Modular Industrial Package, Series: P20PC, 2000 mm Length, 800 mm Width, 800 mm Depth, NEMA 12/IP55, Lock: Keyed, Panel Mount, Steel, Polyester Powder Painted, Light Gray
Supporting Information

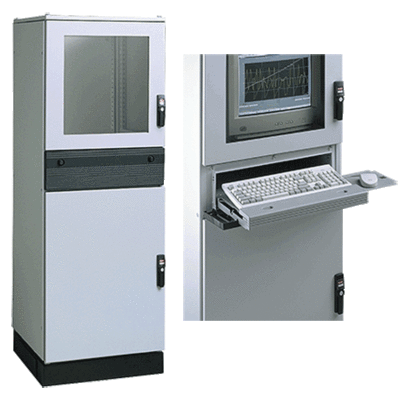

- Frame is enclosed with solid sides, a solid top and a 100-mm solid base|Three doors, two in front and one in back, provide convenient access|Sealed keyboard compartment maintains enclosure integrity when the compartment door is opened|The 19 in diagonal top window door, hinged on the left, offers viewing access for a variety of monitor sizes and has a small flush swing handle with keylock for system security|The vented frame shelf in the top compartment is constructed of 14 ga steel and is painted with RAL 7035 textured light-gray polyester powder paint|The ProLine keyboard compartment includes a locking feature, an angled palm rest, a cable access port for wiring and integral mouse pad holders for both left-handed and right-handed people|The accessory front opening accommodates a number of optional components, such as keyboard shelves and control compartments
- Frames are a roll formed, robotically welded design made of 12 ga steel with solid steel, fully welded corners
- Frames accommodate the 25 mm DIN standard and include rectangular holes for clip nuts and through holes for use with thread forming screws
- External sides, covers and doors are 16 or 14 ga steel
- Seamless foam in place gasket provides a watertight, dust tight seal against moisture and contaminants
- Gasket and latching system together ensure a solid seal with low closure force
- Solid front doors equipped with a ProLine™ latching system
- Flush bezel handle with defeater
- Reversible hinge, default left hinge
- Slotted bit insert default
- Integral frame channels support the full weight of the subpanels
- Galvanized full subpanel on single door enclosures, painted subpanel on double door enclosures
- Three doors, two in front and one in back, provide convenient access
- The sealed keyboard compartment maintains enclosure integrity when the compartment door is opened
- The 19 in diagonal top window door, hinged on the left, offers viewing access for a variety of monitor sizes and has a small flush swing handle with keylock for system security
- The vented frame shelf in the top compartment is constructed of 14 ga steel and is painted with RAL 7035 textured light gray polyester powder paint
- The ProLine™ keyboard compartment includes a locking feature, an angled palm rest, a cable access port for wiring and integral mouse pad holders for both left handed and right handed people
- The bottom compartment includes a solid door hinged on the left that has a small flush swing handle with key lock, this compartment can be used to install computer equipment, panel mounted equipment or rack mounted control systems
- Brand: nVent HoffmanColor: Light GrayDepth: 800Finish: Polyester Powder Painted
