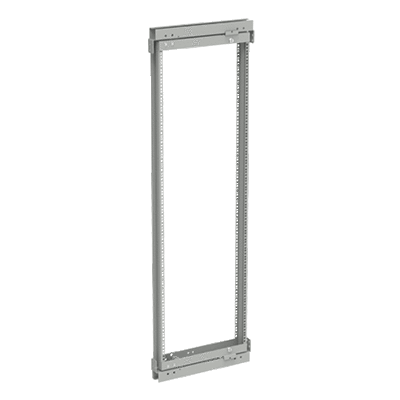

nVent Hoffman PSF208
Hoffman ProLine™ PSF208 P20 Heavy Duty Swing Out Rack Frame, 1838 mm H x 496 mm W x 87 mm D, For Use With ProLine™ 2000 mm H x 800 mm W Modular Enclosures, Steel
Enclosure Box Hardware and Accessories
6770758
PSF208
nVent Hoffman
$0.00
/ ea
- Color: Light Gray
- Depth: 87
- Height: 1838
- Material: Steel
- Series: P20
- Suitable For Use With: ProLine™ 2000 mm H x 800 mm W Modular Enclosures
- Type: Heavy Duty
- Width: 496
Heavy-Duty Swing-Out Rack Frame, fits 2000x800mm, Light Gray, Steel
- Features
- Swing-out mounting supports mount to inside of frame at any vertical location
- Spring loaded pivot post makes installation easy
- Swing-out rack frames can also be installed in right, left or both bays of 1200 mm wide frames using center uprights
- Maximum equipment load is 300 lb
- Mounting holes accommodate either English or metric cage nuts, which are ordered separately
- Hinges that provide 170 deg rotation are optional
- Swing-out rack frame assemblies are supplied with mounting supports
