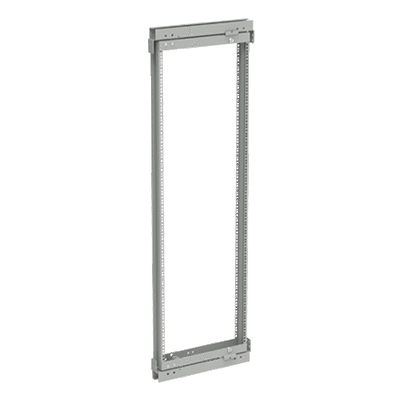

nVent Hoffman PSF228
Hoffman ProLine Swing Out Rack Frame, Heavy Duty, Series: P20, 496 mm Width, 87 mm Depth, 2015 mm Height, For Use With: ProLine 2200 mm H x 800 mm W Modular Enclosures, Steel, Light Gray
Supporting Information
- Spring loaded pivot post makes installation easy|Swing-out rack frames can also be installed in right, left or both bays of 1200 mm wide frames using center uprights|Maximum equipment load is 300 lb|Mounting holes accommodate either English or metric cage nuts, which are ordered separately|Hinges that provide 170 deg rotation are optional|Rack Frames are available for 600-, 700- and 800-mm wide enclosure frames|Swing-out mounting supports mount to inside of frame at any vertical location, flexibility to select any model size equal to or shorter in height (That is use of 1400mm rack frame in 2000mm high enclosure)
- Swing-out mounting supports mount to inside of frame at any vertical location
- Spring loaded pivot post makes installation easy
- Swing-out rack frames can also be installed in right, left or both bays of 1200 mm wide frames using center uprights
- Maximum equipment load is 300 lb
- Mounting holes accommodate either English or metric cage nuts, which are ordered separately
- Hinges that provide 170 deg rotation are optional
- Swing-out rack frame assemblies are supplied with mounting supports
- Brand: nVent HoffmanColor: Light GrayDepth: 87
