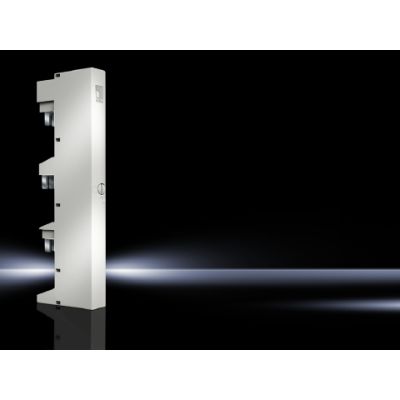

Rittal 9342210

Rittal 9342210 Connection Adapter, 690 VAC, 63 A, 3-Pole, 3-Phase, Compact Enclosure, Cable Outlet Bottom, 2.5 to 10 sq-mm Wire Size, For Use With 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System, ABS, Pale Gray
Enclosure Box Hardware and Accessories
7270346 9342210
Rittal
$0.00 / ea

Rittal 9342210
  • Color: Pale Gray
  • Dimensions: 215 mm H x 20 mm W
  • Material: ABS
  • Specifications: 690 VAC, 63 A, 3-Pole, 3-Phase, Compact Enclosure, Cable Outlet Bottom, 2.5 to 10 sq-mm Wire Size
  • Suitable For Use With: 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System
Rittal Connection Adapter, For Use With: 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System, 690 VAC, 63 A, 3-Pole, 3-Phase, Compact Enclosure, Cable Outlet Bottom, 2.5 to 10 sq-mm Wire Size, ABS, Pale Gray, 215 mm H x 20 mm W
QTY
Add to Wishlist
  • Features
  • The rated operating voltage for DC applications depends on the busbar arrangement in the busbar support 934050/934150/934250
  • Fire protection corresponding to UL 94-V0
  • ABS cover, polyamide (PA 6.6) chassis, fiberglass reinforced, thermoplastic polyester (PBT)
  • Pale gray (RAL 7035) connection adaptor
