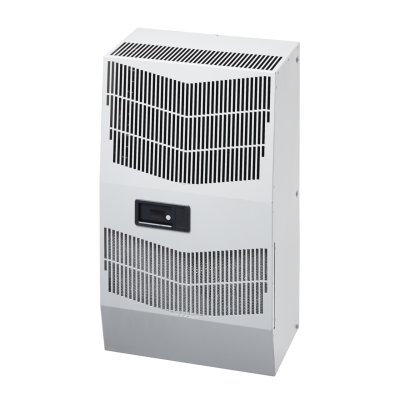

nVent Hoffman G280426G102
nVent HOFFMAN Spectracool Sealed Enclosure Air Conditioner, 1-Phase Outdoor, Series: MCLG, 230 VAC, 4.6/5.8 A, 1435 W Power, 50/60 Hz Frequency, 4900 Btu/hr Capacity, NEMA 4X Enclosure, Mechanical Thermostat Control, Terminal Block Connection, -40 to 55 deg C, Side Mounting, 304 Stainless Steel, Light Gray, 28.55 in H x 16.97 in W x 10.1 in D Dimensions
Supporting Information
- Attractive industrial design with minimal use of visible fasteners|Energy-efficient rotary compressor on most models|Level 2 Protection Include - Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat|R407C, R513A or R134a refrigerants|115, 230 and 400/460 VAC 3-phase power input on most models|All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped|Operating temperature range from -40 F/-40 C to 131 F/55 C
- Energy efficient rotary compressor on most models
- R407C and R134A earth friendly refrigerants
- UL listed to save customers and money with agency approvals
- Exterior and partially recessed mounting options
- Attractive industrial design with minimal use of visible fasteners
- Reliable mechanical thermostat on enclosure side of the unit, indoor air conditioner
- Galvanized sheet metal cover for rugged factory and outdoor environments
- Easy mount flanges for simple installation
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Terminal block power input
- Cutout adapter options for enclosures with GENESIS™ and T-series air conditioners, enable users to easily transition to the new unit
- EASYSWAP adaptor plenum (GENESIS™ M28) enables Spectracool™ to be mounted to GENESIS™ M28 air conditioner cutout catalog number PLM28G28
- EASYSWAP adaptor plenum (T-Series T29) enables Spectracool™ to be mounted to T-series T29 air conditioner cutout catalog number PLT29G28
- Brand: nVent HoffmanAmperage Rating: 4.6/5.8Capacity range: 4600Color: Light GrayConnection Type: Terminal BlockControl Type: Mechanical ThermostatDimensions: 28.55 in H x 16.97 in W x 10.1 in DEnclosure Type: NEMA 4XFrequency Rating: 50/60Material: 304 Stainless SteelMounting Type: Side
