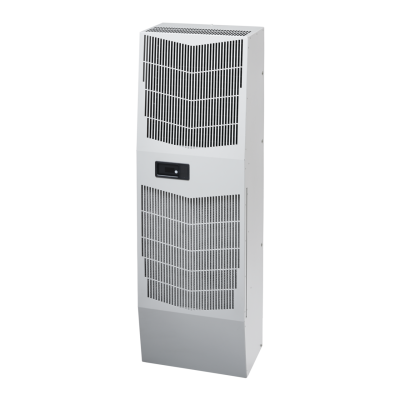

nVent Hoffman G520816G102
nVent HOFFMAN Spectracool Enclosure Air Conditioner, 1-Phase Indoor/Outdoor, Series: MCLG, 115 VAC, 11.2/12.3 A, 2300 W Power, 50/60 Hz Frequency, 8000 Btu/hr Capacity, NEMA 1/2/3/3R/4/12/13/IP65/IP66 Enclosure, Basic Mechanical Thermostat Control, Terminal Connection, -40 to 131 deg F, Flanged Mounting, Galvanized Sheet Metal, Light Gray, 52.69 in H x 17.12 in W x 11.66 in D Dimensions
Supporting Information
- Attractive industrial design with minimal use of visible fasteners|Energy-efficient rotary compressor on most models|Level 2 Protection Include - Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat|R407C, R513A or R134a refrigerants|115, 230 and 400/460 VAC 3-phase power input on most models|All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped|Operating temperature range from -40 F/-40 C to 131 F/55 C
- Energy efficient rotary compressor on most models
- Attractive industrial design with minimal use of visible fasteners
- Reliable mechanical thermostat on enclosure side of the unit
- Galvanized sheet metal cover for rugged factory and outdoor environments
- Easy mount flanges for simple installation
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Every unit functionally tested before shipping
- Dual condenser side air movers for performance redundancy
- Brand: nVent HoffmanAmperage Rating: 11.2/12.3Capacity range: 8000Color: Light GrayConnection Type: TerminalControl Type: Basic Mechanical ThermostatDimensions: 52.69 in H x 17.12 in W x 11.66 in DEnclosure Type: NEMA 1/2/3/3R/4/12/13/IP65/IP66Frequency Rating: 50/60
