nVent Hoffman G521226G150

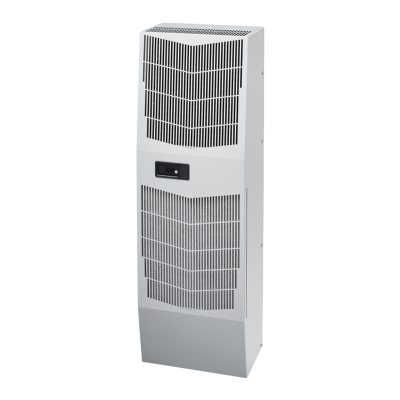

nVent HOFFMAN Spectracool™ G521226G150 MCLG 1-Phase Outdoor Sealed Enclosure Air Conditioner With Heat Package, 208 to 230/230 VAC, 9.5/10.6 A, 50/60 Hz, NEMA 1/2/3/3R/4/12/13/IP65/IP66 Enclosure, 12000 Btu/hr
Enclosure Climate Control
7344708
G521226G150
nVent Hoffman
$0.00
/ ea
- Amperage Rating: 9.5/10.6
- Capacity range: 12000
- Color: Light Gray
- Connection Type: Terminal Block
- Control Type: Mechanical Thermostat
- Dimensions: 52.69 in H x 17.12 in W x 11.66 in D
- Enclosure Type: NEMA 1/2/3/3R/4/12/13/IP65/IP66
- Frequency Rating: 50/60
- Material: Sheet Metal
- Mounting Type: Side
- Power Rating: 3500
- Series: MCLG
- Temperature Rating: -40 to 55
- Type: 1-Phase Outdoor
- Voltage Rating: 208 to 230/230
SpectraCool Outdoor with Heat G52, 12000BTU 230V, Lt Gray, Steel
- Features
- Energy efficient rotary compressor on most models
- R407C and R134A earth friendly refrigerants
- UL listed to save customers and money with agency approvals
- Exterior and partially recessed mounting options
- Attractive industrial design with minimal use of visible fasteners
- Reliable mechanical thermostat on enclosure side of the unit, indoor air conditioner
- Galvanized sheet metal cover for rugged factory and outdoor environments
- Easy mount flanges for simple installation
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Terminal block power input
- Cutout adapter options for enclosures with GENESIS™ and T-series air conditioners, enable users to easily transition to the new unit
- EASYSWAP adaptor plenum (GENESIS™ M52) enables Spectracool™ to be mounted to GENESIS™ M52 air conditioner cutout catalog number PLM52G52
- Dual condenser side air movers for performance redundancy on G52 model
