nVent Hoffman N170126G010

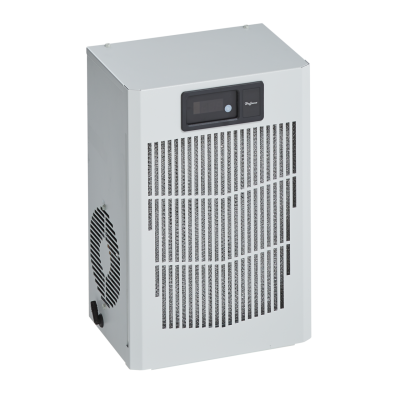

nVent HOFFMAN Spectracool Enclosure Air Conditioner, Compact Indoor, Series: MCLG, 230 VAC, 2.1 A, 300 W Power, 50/60 Hz Frequency, 1025 Btu/hr Capacity, NEMA 12 Enclosure, 50 to 125 deg F, Ceiling Mounting, Steel, Light Gray, 17.64 in H x 12 in W x 8.4 in D Dimensions
Supporting Information
- Narrow design accommodates 12 in (300 mm) deep cabinets|Attractive industrial design with minimal use of visible fasteners|Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance|R513A or R134a refrigerant|Models for 115, 230 and 400/460 VAC power input|Operating temperature range from 50 F/10 C to 125 F/52 C|Reliable mechanical thermostat is located behind the cover of the unit, air conditioner models include digital display on ambient side|Galvanized sheet-metal cover for rugged factory and outdoor environments|Easy-mount flanges for simple installation
- Narrow design accommodate 12 in D cabinets
- R134A earth friendly refrigerant
- Attractive industrial design with minimal use of visible fasteners
- Reliable mechanical thermostat is located behind the cover of the unit, air conditioner models include digital display on ambient side
- Galvanized sheet metal cover for rugged factory environments
- Easy mount flanges for simple installation
- Cutout adapter options for enclosures with GENESIS™ air conditioners enable users to easily transition to the new unit
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Mounting hardware, gaskets and user manual furnished with the unit
- Brand: nVent HoffmanAmperage Rating: 2.1Capacity range: 1000Color: Light GrayDimensions: 17.64 in H x 12 in W x 8.4 in DEnclosure Type: NEMA 12Frequency Rating: 50/60Material: SteelMounting Type: CeilingPower Rating: 300Series: MCLG
