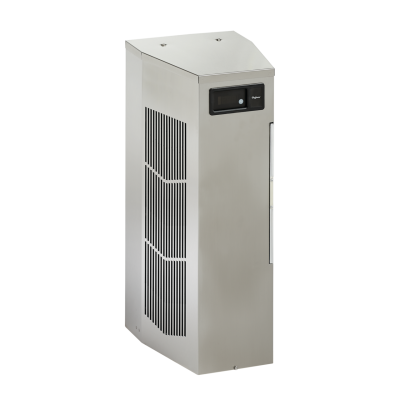

nVent Hoffman N280426G102
nVent HOFFMAN Spectracool Enclosure Air Conditioner, 1-Phase Indoor/Outdoor, Series: MCL, 230 VAC, 4.9/5 A, 1114 W Power, 50/60 Hz Frequency, 3800 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, Basic Mechanical Thermostat Control, Terminal Connection, 125 deg F, Flanged Mounting, 304 Stainless Steel, Light Gray, 28 in H x 11-1/2 in W x 14 in D Dimensions
Supporting Information
- Level 2 Protection Include - Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat|Narrow design accommodates 12 in (300mm) deep cabinets|Attractive industrial design with minimal use of visible fasteners|Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance|R407C, R513A or R134a refrigerants|Models for 115, 230 and 400/460 3-phase VAC power input|Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)|Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Attractive industrial design with minimal use of visible fasteners
- Air conditioner models include digital display on ambient side
- Cutout adapter options for enclosures with GENESIS™ air conditioners enable users to easily transition to the new unit
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
- Easy mount flanges for simple installation
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Dust resistant condenser coil allows the unit to be run filterless in most applications
- Reliable mechanical thermostat on enclosure side of the unit
- SpectraCool narrow with advanced corrosion protection
- Brand: nVent HoffmanAmperage Rating: 4.9/5Capacity range: 4000Color: Light GrayConnection Type: TerminalControl Type: Basic Mechanical ThermostatDimensions: 28 in H x 11-1/2 in W x 14 in DEnclosure Type: NEMA 3R/4/12Frequency Rating: 50/60
