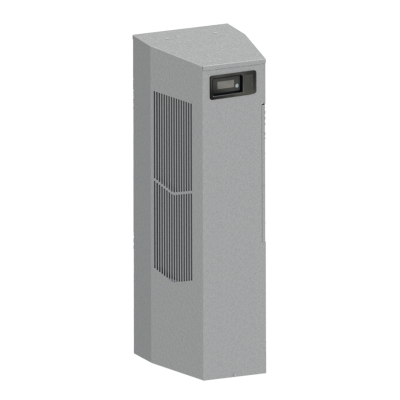

nVent Hoffman N360826G050
nVent HOFFMAN Spectracool Enclosure Air Conditioner, Indoor Narrow, Series: MCLG, 230 VAC, 6.1 A, 2635 W Power, 50/60 Hz Frequency, 8000 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, -40 to 55 deg C, Ceiling Mounting, Steel, Light Gray, 36 in H x 11-1/2 in W x 14 in D Dimensions
Supporting Information
- Narrow design accommodates 12 in (300-mm) deep cabinets|Attractive industrial design with minimal use of visible fasteners|Level 2 Protection Include - Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat|Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance|R407C, R513A or R134a refrigerants|Models for 115, 230 and 400/460 3-phase VAC power input|Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)|Reliable mechanical thermostat on enclosure side of the unit, indoor air conditioner models include digital display on ambient side
- Narrow design accommodate 12 in D cabinets
- Energy efficient rotary compressor on N36 and N43 models
- R407C and R134A earth friendly refrigerants
- Attractive industrial design with minimal use of visible fasteners
- Reliable mechanical thermostat is located behind the cover of the unit, air conditioner models include digital display on ambient side
- Galvanized sheet metal cover for rugged factory environments
- Easy mount flanges for simple installation
- Cutout adapter options for enclosures with GENESIS™ air conditioners enable users to easily transition to the new unit
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Mounting hardware, gaskets and user manual furnished with the unit
- Brand: nVent HoffmanAmperage Rating: 6.1Capacity range: 8000Color: Light GrayDimensions: 36 in H x 11-1/2 in W x 14 in DEnclosure Type: NEMA 3R/4/12Frequency Rating: 50/60
