Eaton B-Line Inc. 30308RHC

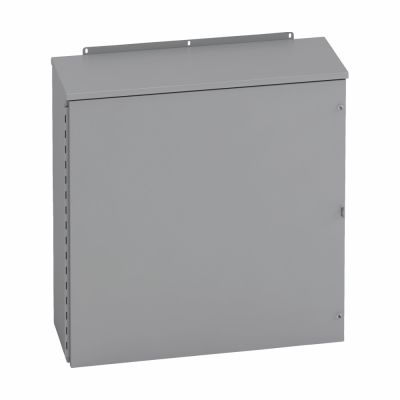

B-Line 30308 RHC Electrical Enclosure, 30 in W x 8 in D x 30 in H, NEMA 3R NEMA Rating, Carbon Steel
Enclosure General Purpose
7694548
30308RHC
Eaton B-Line Inc.
$0.00
/ ea
- Color: Gray
- Cover Type: Large Continuous Hinge
- Depth: 8
- Finish: Galvannealed/Polyester Powder Coated/Phosphate Undercoat
- Height: 30
- Lock: Padlock Hasp
- Material: Carbon Steel
- Mounting Type: External Feet/Wall
- Nema Rating: NEMA 3R
- Panel Size: 26.87 in W x 26.87 in H
- Width: 30
Eaton B-Line series Type 3/3R panel enclosures, 30" height, 8" length, 30" width, NEMA 3R, Hinged cover, RHC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel
- Features
- Used as wiring boxes, junction and pull boxes
- Enclosure and door are fabricated from code gauge galvaneal steel
- Enclosure standard without knockouts
- Door is secured to the body with a continuous hinge and stainless steel pin ON one side and captive screws ON the opposite side
- Door has padlock hasp with sealing hole provision
- External mounting feet are provided for secure wall mounting
- Ground stud provided on door
- Rain hood, plated screws, piano hinge with stainless steel pin
