Eaton B-Line Inc. 443-4CHC

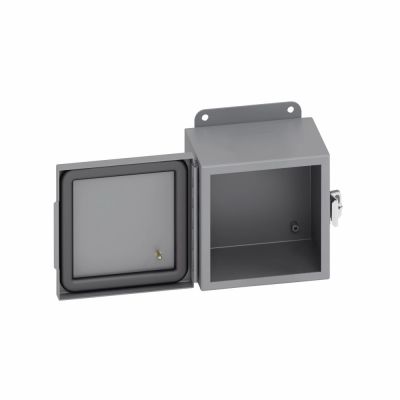

B-Line 443-4CHC JIC Enclosure, 4 in W x 3 in D x 4 in H, NEMA 4/IP66 NEMA Rating, Carbon Steel
Enclosure General Purpose
7671501
443-4CHC
Eaton B-Line Inc.
$0.00
/ ea
- Color: Gray
- Cover Type: Continuous Hinged
- Depth: 3
- Finish: Polyester Powder Coated
- Height: 4
- Material: Carbon Steel
- Mounting Type: External Feet/Wall
- Nema Rating: NEMA 4/IP66
- Width: 4
B-Line JIC Enclosure, 4 in Width, 3 in Depth, 4 in Height, NEMA 4/IP66 NEMA Rating, Continuous Hinged Cover, External Feet/Wall Mounting, Carbon Steel, Polyester Powder Coated, Gray
- Features
- Enclosure and cover are fabricated from 16 ga steel
- All continuous welded seams are finished smooth
- Cover is secured to the body with a continuous hinge on one side and easy to operate stainless steel screw clamps mounted to the opposite side
- Stainless steel hinge pin
- Cover has a seamless poured in place gasket
- Ground stud provided on cover
- External mounting feet are provided for secure wall mounting
- Protects against windblown dust and rain, splashing water and hose directed water
- Polyester powder coated over wash and phosphate undercoat 16 ga steel
- Continuous piano hinge with stainless steel pin and door clamp
