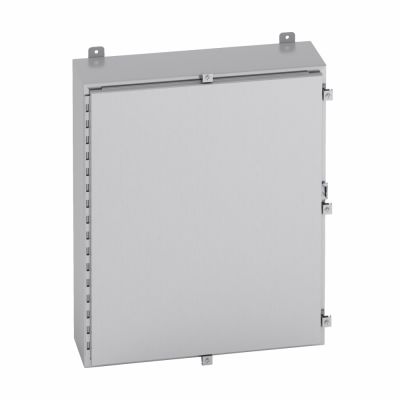

Eaton B-Line Inc. 483616-4XS
Eaton B-Line series Type 4X panel enclosure, 48"height, 16"length, 36"width, NEMA 4X, Hinged cover, 4XS enclosure, Wall mount, Medium single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
Supporting Information
- Enclosure and door are fabricated from 14 ga type 304 or type 316L stainless steel|All continuous welded seams are finished smooth|Doors are secured to the body with a heavy duty, stainless steel continuous hinge and pin on one side and easy-to release stainless steel door clamps mounted to the other three sides|Each door has a padlock hasp with sealing hole provision|Print pocket is provided|Door has a seamless poured in place gasket|Ground stud provided on door and body|Formed lip around enclosure openings to diverts liquids and contaminants|External mounting feet are provided for secure wall mounting|Protects against corrosion, windblown dust and rain, splashing water and hose directed water|Stainless door clamps
- Enclosure and door are fabricated from 14 ga type 304 or type 316L stainless steel
- All continuous welded seams are finished smooth
- Doors are secured to the body with a heavy duty, stainless steel continuous hinge and pin on one side and easy-to release stainless steel door clamps mounted to the other three sides
- Each door has a padlock hasp with sealing hole provision
- Print pocket is provided
- Door has a seamless poured in place gasket
- Ground stud provided on door and body
- Formed lip around enclosure openings to diverts liquids and contaminants
- External mounting feet are provided for secure wall mounting
- Protects against corrosion, windblown dust and rain, splashing water and hose directed water
- Stainless door clamps
- Brand: Eaton B-Line Inc.Color: GrayCover Type: Continuous HingedDepth: 16Finish: Smooth BrushedHeight: 48Lock: Padlock HaspMaterial: 304 Stainless SteelMounting Type: External Feet/WallNema Rating: NEMA 4X/IP66Panel Size: 32.87 in W x 44.87 in H
