Eaton B-Line Inc. 664-4XALC

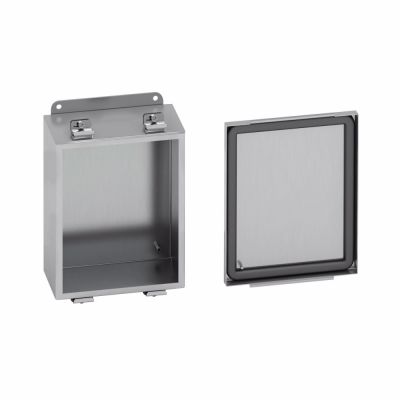

B-Line 664-4XALC JIC Enclosure, 6 in W x 4 in D x 6 in H, NEMA 4X NEMA Rating, Aluminum
Enclosure General Purpose
7543893
664-4XALC
Eaton B-Line Inc.
$0.00
/ ea
- Color: Gray
- Cover Type: Lift-Off
- Depth: 4
- Finish: Smooth Brushed
- Height: 6
- Lock: Padlock Hasp
- Material: Aluminum
- Mounting Type: External Feet/Wall
- Nema Rating: NEMA 4X
- Panel Size: 4.87 in W x 4.87 in H
- Width: 6
Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 6" width, NEMA 4X, Screw cover, 4XALC enclosure, Wall mount, Small single door, External mounting feet, Aluminum, Seamless poured in-place gasket
- Features
- Enclosure and cover are fabricated from 14 ga, type 5052-H32 aluminum
- All continuous welded seams are finished smooth
- Cover is secured to the body with easy to operate stainless steel screw clamps mounted on all four sides
- Each door has a print pocket and padlock hasp with sealing hole provision
- Cover has a seamless poured in place gasket
- External mounting feet are provided for secure wall mounting
- Protects against corrosion, windblown dust and rain, splashing water and hose directed water
- Panel mount provisions, stainless door clamps
