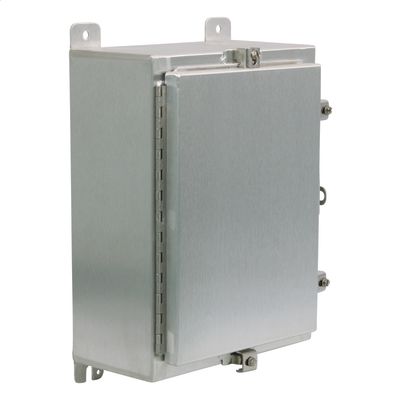

Hubbell Wiegmann ALN4363008

WIEGMANN ALN4363008 1-DOOR WELDED SEAM ENCLOSURE, 30 IN W X 8 IN D X 36 IN H, NEMA 3R/4/4X/12/13, ALUMINUM ALLOY
Enclosure General Purpose
4293061 ALN4363008
Hubbell Wiegmann
$0.00 / ea

Hubbell Wiegmann ALN4363008
  • Capacity: 8640
  • Color: Aluminum
  • Cover Type: Continuous Hinged
  • Depth: 8
  • Finish: Smooth Grained
  • Height: 36
  • Lock: Padlock
  • Material: Aluminum Alloy
  • Mounting Type: External Feet/Wall
  • Nema Rating: NEMA 3R/4/4X/12/13
  • Panel Size: 33 x 27
  • Series: ALN4
  • Type: 1-Door Welded Seam
  • Width: 30
Wiegmann Enclosure, 1-Door Welded Seam, Series: ALN4, 30 in Width, 8 in Depth, 36 in Height, NEMA 3R/4/4X/12/13, Continuous Hinged Cover, 33 x 27 in Panel, Lock: Padlock, 8640 cu-in, External Feet/Wall Mount, Aluminum Alloy, Smooth Grained, Aluminum
QTY
Add to Wishlist
  • Features
  • Bodies and doors fabricated from 14 ga 0.08 in THK 5052-H32 aluminum
  • Continuously welded seams ground smooth, no holes or knockouts
  • Body stiffeners are provided in larger enclosures for extra rigidity
  • Rolled lip on three sides of door and all sides of enclosure opening is provided to exclude liquids and contaminants
  • Quick and easy to operate stainless steel door clamps are provided
  • Doors are removable by pulling stainless steel continuous hinged pin
  • Hasp and staple are provided for padlocking
  • Print pocket is provided
  • Closed cell oil-resistant neoprene gasket
  • Collar studs provided for mounting
  • External mounting feet are provided for mounting enclosures
  • Grounding provisions provided
  • Without knockout
