Hubbell Wiegmann B141206CHQR

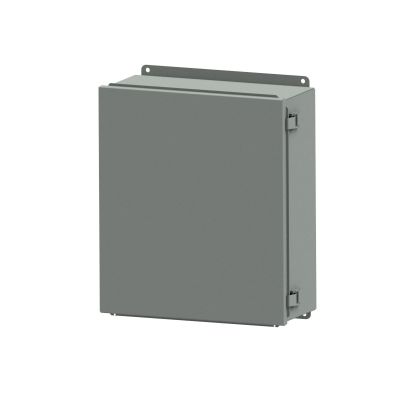

WIEGMANN B141206CHQR B-CHQR JIC WELDED SEAM ENCLOSURE, 12 IN W X 6 IN D X 14 IN H, NEMA 12/13 NEMA RATING, CARBON STEEL
Enclosure General Purpose
4943987
B141206CHQR
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 1008
- Color: Gray
- Cover Type: Continuous Hinged
- Depth: 6
- Finish: Textured/Polyester Powder Coated
- Height: 14
- Lock: Quick-Release Latch
- Material: Carbon Steel
- Mounting Type: External/Surface/Wall
- Nema Rating: NEMA 12/13
- Panel Size: 12.88 x 10.88
- Series: B-CHQR
- Type: JIC Welded Seam
- Width: 12
Wiegmann Enclosure, JIC Welded Seam, Series: B-CHQR, 12 in Width, 6 in Depth, 14 in Height, NEMA 12/13 NEMA Rating, Continuous Hinged Cover, 12.88 x 10.88 in Panel, Lock: Quick-Release Latch, 1008 cu-in Capacity, External/Surface/Wall Mounting, Carbon Steel, Textured/Polyester Powder Coated, Gray
- Features
- Bodies fabricated from 14 ga and doors fabricated from 16 ga steel
- Continuously welded seams ground smooth, no holes or knockouts
- Lids are sealed with closed cell oil-resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided for mounting
- External quick release latches secure cover
- Standard continuous hinged secures cover
- Grounding provisions provided
- Without knockout
