Hubbell Wiegmann N412302608CSSSTD

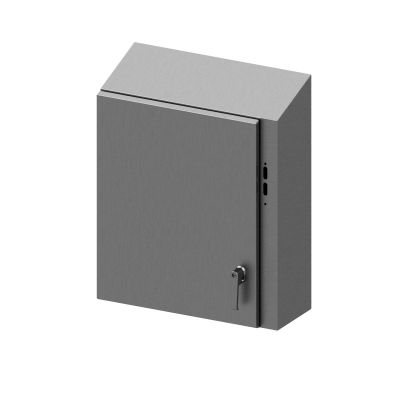

WIEGMANN N412302608CSSSTD ULTIMATE 1-DOOR SLOPE TOP DISCONNECT ENCLOSURE, 26 IN W X 8 IN D X 30 IN H, NEMA 3R/4/4X/12/13, 304 STAINLESS STEEL
Enclosure General Purpose
7648055
N412302608CSSSTD
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 6240
- Color: Silver
- Cover Type: Concealed Hinged
- Depth: 8
- Finish: Smooth Grained/Polyester Powder Coated
- Height: 30
- Lock: 2-Point Latch
- Material: 304 Stainless Steel
- Mounting Type: Mounting Hole/Flange/Wall
- Nema Rating: NEMA 3R/4/4X/12/13
- Panel Size: 22.2 in W x 28.2 in H
- Series: N412CSSSTD ULTIMATE®
- Type: 1-Door Slope Top
- Width: 26
Wiegmann Disconnect Enclosure, 1-Door Slope Top, Series: N412CSSSTD ULTIMATE, 26 in Width, 8 in Depth, 30 in Height, NEMA 3R/4/4X/12/13, Concealed Hinged Cover, 22.2 in W x 28.2 in H Panel, Lock: 2-Point Latch, 6240 cu-in, Mounting Hole/Flange/Wall Mount, 304 Stainless Steel, Smooth Grained/Polyester Powder Coated, Silver
- Features
- Bodies and doors fabricated from 14 ga 304 stainless steel
- Seams are continuously plasma welded and ground smooth
- Increased tub opening for better access
- 20 deg sloped top
- Sloped "top tub flange"
- Doors are interchangeable and easily removable
- Grounding provisions provided
- 1/4 turn semi-flush oiltight latches are supplied to hold door securely closed
- Print pocket is provided
- Doors are sealed with poured in place polyurethane gasket
- Mounting holes in rear of enclosure
- Studs for mounting optional back panel (the ultimate back panels have increased in size to accommodate larger footprint installations)
- Ultimate accessory driven
- Door latching system installed on door with slotted insert defeater mechanism to open
- Latching system interlocks with the disconnect handle for added safety
