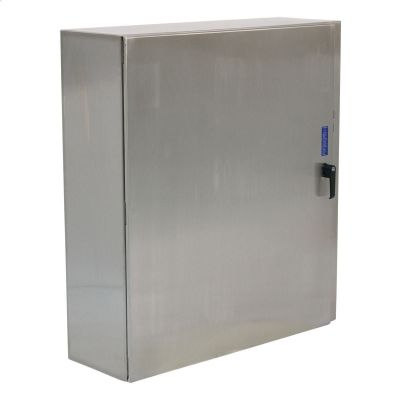

Hubbell Wiegmann N412603812CDSS

WIEGMANN N412603812CDSS ULTIMATE 1-DOOR DISCONNECT ENCLOSURE, 38 IN W X 12 IN D X 60 IN H, NEMA 3R/4/4X/12/13/412, 304 STAINLESS STEEL
Enclosure General Purpose
6798678 N412603812CDSS
Hubbell Wiegmann
$0.00 / ea

Hubbell Wiegmann N412603812CDSS
  • Capacity: 27360
  • Color: Silver
  • Cover Type: Concealed Hinged
  • Depth: 12
  • Finish: Smooth Grained/Polyester Powder Coated
  • Height: 60
  • Lock: 2-Point Latch
  • Material: 304 Stainless Steel
  • Mounting Type: Mounting Hole/Flange/Wall
  • Nema Rating: NEMA 3R/4/4X/12/13/412
  • Panel Size: 34.2 in W x 58.2 in H
  • Series: N412CDSS ULTIMATE®
  • Type: 1-Door
  • Width: 38
Wiegmann Disconnect Enclosure, 1-Door, Series: N412CDSS ULTIMATE, 38 in Width, 12 in Depth, 60 in Height, NEMA 3R/4/4X/12/13/412, Concealed Hinged Cover, 34.2 in W x 58.2 in H Panel, Lock: 2-Point Latch, 27360 cu-in, Mounting Hole/Flange/Wall Mount, 304 Stainless Steel, Smooth Grained/Polyester Powder Coated, Silver
QTY
Add to Wishlist
  • Features
  • Bodies and doors fabricated from 14 ga 304 stainless steel
  • Seams are continuously plasma welded and ground smooth
  • Increased tub opening for better access
  • Doors are interchangeable and easily removable
  • Grounding provisions provided
  • Doors are sealed with poured in place polyurethane gasket
  • Mounting holes in rear of enclosure
  • Studs for mounting optional sub panel
  • Door latching system installed on door with a slotted insert defeater mechanism to open
  • Latching system interlocks with the disconnect handle for added safety
