Hubbell Wiegmann N4D624810

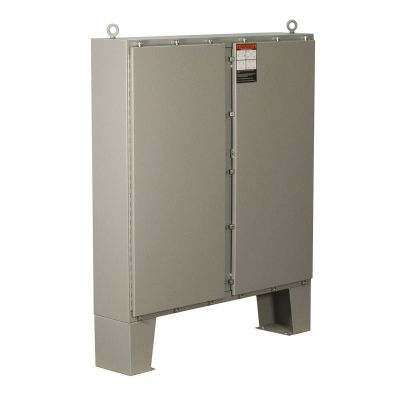

WIEGMANN N4D624810 2-DOOR ENCLOSURE, 48.12 IN W X 10.12 IN D X 62.12 IN H, NEMA 4, CARBON STEEL
Enclosure General Purpose
6861736
N4D624810
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 30250.85
- Color: Gray
- Cover Type: Continuous Hinged
- Depth: 10.12
- Finish: Textured
- Height: 62.12
- Lock: Hasp and Staple
- Material: Carbon Steel
- Mounting Type: Floor
- Nema Rating: NEMA 4
- Series: N4D
- Type: 2-Door
- Width: 48.12
Wiegmann Enclosure, 2-Door, Series: N4D, 48.12 in Width, 10.12 in Depth, 62.12 in Height, NEMA 4, Continuous Hinged Cover, Lock: Hasp and Staple, 30250.85 cu-in, Floor Mount, Carbon Steel, Textured, Gray
- Features
- Bodies and doors are fabricated from 12 ga steel and floor stand feet are fabricated from 10 ga steel
- Continuously welded seams ground smooth, no holes or knockouts
- X-type body stiffeners are added for extra strength
- Rolled lip around three sides of door and along top of enclosures opening excludes liquids and contaminants from entering
- Quick and easy to operate stainless steel door clamps around three sides of doors are provided
- Heavy gauge continuous hinges are provided to secure door
- Doors are removable by pulling stainless steel continuous hinged pin
- Hasp and staple are provided for padlocking
- Standard 12 in H floor kits are welded to bottom of enclosure
- Heavy duty removable lifting eyes
- Easily removable center post permits easy panel installations
- Doors are sealed with poured in place polyurethane gasket
- Grounding provisions provided
- Continuously welded seams construction
