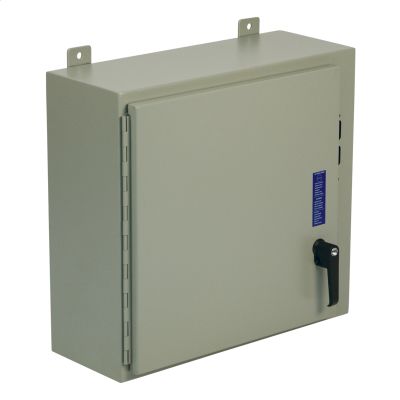

Hubbell Wiegmann SDN12362510PL
N12 Single Door Flanged Disconnect 36X25X10 Carbon Steel - Gray
Supporting Information
- Bodies and doors fabricated from 14 ga steel|Guide brackets and interlock door catch are welded to the inside of door|Holes are provided in body and door for mounting operating handle, operating mechanism and door closing mechanism|Enclosures under 40 in H require two-point door hardware|Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms are provided|A cover latch bar is also included for door hardware|Print pocket is provided|Grounding provisions provided|Seams are continuously plasma welded and ground smooth|External mounting feet are provided|Rolled lip around all sides of enclosure opening excludes liquids and contaminants|Polyurethane poured in place gasket|Enclosures have padlocking, defeater handle and latching system|Doors easily removed by pulling continuous hinge pin
- Bodies and doors fabricated from 14 ga steel
- Seams are continuously plasma welded and ground smooth
- Rolled lip around all sides of enclosure opening excludes liquids and contaminants
- Doors easily removed by pulling continuous hinge pin
- Polyurethane poured in place gasket
- External mounting feet are provided
- Grounding provisions provided
- Holes are provided in body and door for mounting operating handle, operating mechanism and door closing mechanism
- Guide brackets and interlock door catch are welded to the inside of door
- A cover latch bar is also included for door hardware
- Print pocket is provided
- Enclosures under 40 in H require two-point door hardware
- Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms are provided
- Enclosures have padlocking, defeater handle and latching system
- Brand: Hubbell WiegmannColor: GrayCover Type: HingedDepth: 10 1/4Finish: Smooth/Polyester Powder Coated
