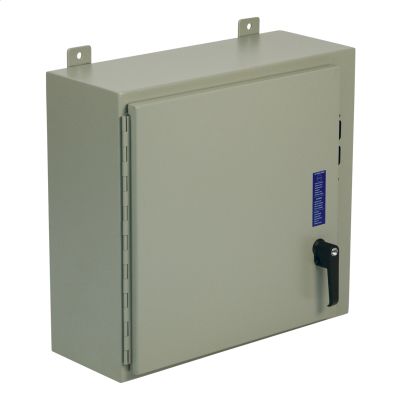

Hubbell Wiegmann SDN12423708PL
N12 Single Door Flanged Disconnect 42X37X8 Carbon Steel - Gray
Supporting Information
- Enclosures 40 in H and larger require three-point door hardware|Polyurethane poured in place gasket|Bodies and doors fabricated from 14 ga steel|Print pocket is provided|Holes are provided in body and door for mounting operating handle, operating mechanism and door closing mechanism|A cover latch bar is also included for door hardware|Rolled lip around all sides of enclosure opening excludes liquids and contaminants|Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms are provided|Guide brackets and interlock door catch are welded to the inside of door|Seams are continuously plasma welded and ground smooth|External mounting feet|Doors easily removed by pulling continuous hinge pin|Enclosures have padlocking, defeater handle and latching system|Grounding provisions provided
- Bodies and doors fabricated from 14 ga steel
- Seams are continuously plasma welded and ground smooth
- Rolled lip around all sides of enclosure opening excludes liquids and contaminants
- Doors easily removed by pulling continuous hinge pin
- Polyurethane poured in place gasket
- External mounting feet are provided
- Grounding provisions provided
- Holes are provided in body and door for mounting operating handle, operating mechanism and door closing mechanism
- Guide brackets and interlock door catch are welded to the inside of door
- A cover latch bar is also included for door hardware
- Print pocket is provided
- Enclosures under 40 in H require two-point door hardware
- Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms are provided
- Enclosures have padlocking, defeater handle and latching system
- Brand: Hubbell WiegmannCapacity: 12763.775Color: GrayCover Type: HingedDepth: 8.13, 8.1300000000000008Finish: Textured/Polyester Powder CoatedHeight: 42Lock: 2-Point LatchMaterial: Carbon SteelMounting Type: External Mounting Feet/Flange/WallNema Rating: NEMA 12/13
