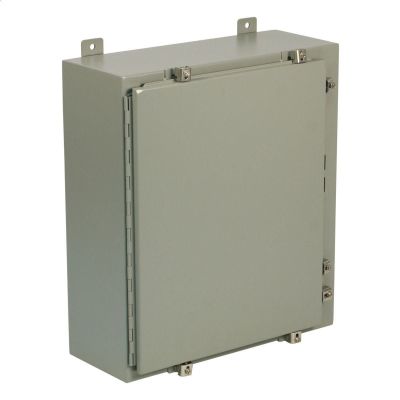

Hubbell Wiegmann SN4483712
N4 Single Door Flanged Disconnect W/Clamp 48X37X12 Carbon Steel - Gray
Supporting Information
- Stainless steel door clamps are provided around three sides of doors for a watertight seal, additional door hardware is not required|Punching in right flange to house the following disconnect operating handles, Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse Type C361 and Type 371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class 9422 variable depth and cable mechanisms|Bracket welded to door for attaching disconnect interlock door catch|Rolled lip around all sides of enclosure opening excludes liquids and contaminants|Doors easily removed by pulling continuous hinge pin|These enclosures are designed to operate properly without the use of door hardware|Bodies and doors fabricated from 14 ga steel|Polyurethane poured in place gasket|Grounding provisions provided|Seams are continuously plasma welded and ground smooth|Holes provided in body for mounting disconnect operating handle and operating mechanism
- Bodies and doors fabricated from 14 ga steel
- Seams are continuously plasma welded and ground smooth
- Rolled lip around all sides of enclosure opening excludes liquids and contaminants
- All exterior hardware is stainless steel
- Stainless steel door clamps are provided around three sides of doors for a watertight seal, additional door hardware is not required
- Doors easily removed by pulling continuous hinge pin
- Polyurethane poured in place gasket
- External mounting feet are provided
- Grounding provisions provided
- Bracket welded to door for attaching disconnect interlock door catch
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- These enclosures are designed to operate properly without the use of door hardware
- Brand: Hubbell WiegmannColor: GrayCover Type: HingedDepth: 12.13Finish: Textured/Polyester Powder Coated
