Hubbell Wiegmann SSN4161208

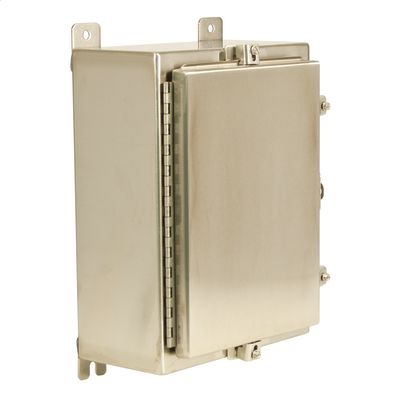

WIEGMANN SSN4161208 1-DOOR ENCLOSURE, 12 IN W X 8 IN D X 16 IN H, NEMA 4/4X/12/13, 304 STAINLESS STEEL
Enclosure General Purpose
4293075
SSN4161208
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 1536
- Color: Silver
- Depth: 8
- Finish: Smooth Grained
- Height: 16
- Lock: Padlock
- Material: 304 Stainless Steel
- Mounting Type: Wall
- Nema Rating: NEMA 4/4X/12/13
- Panel Size: 9 in W x 13 in H
- Series: SSN4
- Type: 1-Door
- Width: 12
Wiegmann Enclosure, 1-Door, Series: SSN4, 12 in Width, 8 in Depth, 16 in Height, NEMA 4/4X/12/13, 9 in W x 13 in H Panel, Lock: Padlock, 1536 cu-in, Wall Mount, 304 Stainless Steel, Smooth Grained, Silver
- Features
- Bodies and doors fabricated from 14 ga type 304 stainless steel has the best corrosion resistance of the standard types of stainless steel
- Continuously plasma welded seams
- Door and body stiffeners are included in larger enclosures for added rigidity
- A rolled lip around three sides of door and all sides of enclosure opening provided to exclude liquids and contaminants
- Quick and easy to operate stainless steel door clamps are provided
- Hasp and staple is provided for padlocking
- Doors are sealed with poured in place polyurethane gasket
- Provides unmatched protection for housing electrical components in highly corrosive environments
- This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants
