Hubbell Wiegmann SSN4162006

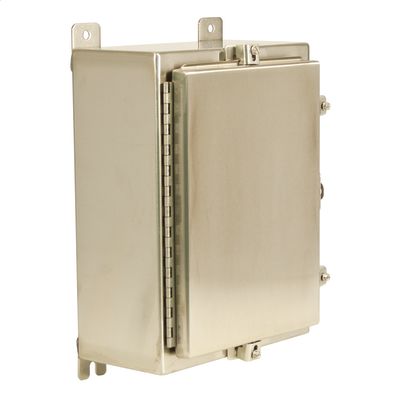

WIEGMANN SSN4162006 1-DOOR WELDED SEAM ENCLOSURE, 20 IN W X 6 IN D X 16 IN H, NEMA 3R/4/4X/12/13, 304 STAINLESS STEEL
Enclosure General Purpose
4944624
SSN4162006
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 1920
- Color: Silver
- Depth: 6
- Finish: Smooth Grained
- Height: 16
- Lock: Padlock
- Material: 304 Stainless Steel
- Mounting Type: External Feet/Wall
- Nema Rating: NEMA 3R/4/4X/12/13
- Panel Size: 13 x 17
- Series: SSN4
- Type: 1-Door Welded Seam
- Width: 20
Wiegmann Enclosure, 1-Door Welded Seam, Series: SSN4, 20 in Width, 6 in Depth, 16 in Height, NEMA 3R/4/4X/12/13, 13 x 17 in Panel, Lock: Padlock, 1920 cu-in, External Feet/Wall Mount, 304 Stainless Steel, Smooth Grained, Silver
- Features
- Bodies and doors fabricated from 14 ga 304 stainless steel
- Continuously plasma welded seams
- A rolled lip around three sides of door and all sides of enclosure opening provided to exclude liquids and contaminants
- Quick and easy to operate stainless steel door clamps are provided
- Hasp and staple are provided for padlocking
- Doors are sealed with poured in place polyurethane gasket
- Collar studs for mounting
- Print pocket is provided
- External mounting feet are provided for mounting enclosures
- Grounding provisions provided
- Without knockout
