Hubbell Wiegmann SSN42420063PT

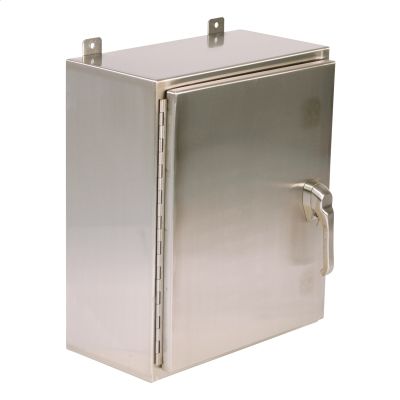

WIEGMANN SSN42420063PT 1-DOOR WELDED SEAM ENCLOSURE, 20 IN W X 6 IN D X 24 IN H, NEMA 3R/4/4X/12, 304 STAINLESS STEEL
Enclosure General Purpose
7083771 SSN42420063PT
Hubbell Wiegmann
$0.00 / ea

Hubbell Wiegmann SSN42420063PT
  • Capacity: 2880
  • Color: Silver
  • Depth: 6
  • Finish: Smooth Grained
  • Height: 24
  • Lock: 3-Point 316L Stainless Steel Padlocking Handle
  • Material: 304 Stainless Steel
  • Mounting Type: External Feet/Wall
  • Nema Rating: NEMA 3R/4/4X/12
  • Panel Size: 21 x 17
  • Series: SSN4-3PT
  • Type: 1-Door Welded Seam
  • Width: 20
Wiegmann Enclosure, 1-Door Welded Seam, Series: SSN4-3PT, 20 in Width, 6 in Depth, 24 in Height, NEMA 3R/4/4X/12, 21 x 17 in Panel, Lock: 3-Point 316L Stainless Steel Padlocking Handle, 2880 cu-in, External Feet/Wall Mount, 304 Stainless Steel, Smooth Grained, Silver
QTY
Add to Wishlist
  • Features
  • Bodies and doors fabricated from 14 ga 304 stainless steel
  • Continuously plasma welded seams
  • A rolled lip around three sides of door and all sides of enclosure opening provided to exclude liquids and contaminants
  • Quick and easy to operate stainless steel door clamps are provided
  • Doors are sealed with poured in place polyurethane gasket
  • Collar studs for mounting
  • Print pocket is provided
  • External mounting feet are provided for mounting enclosures
  • Grounding provisions provided
  • Without knockout
