Hubbell Wiegmann SSN4424212WF3PT

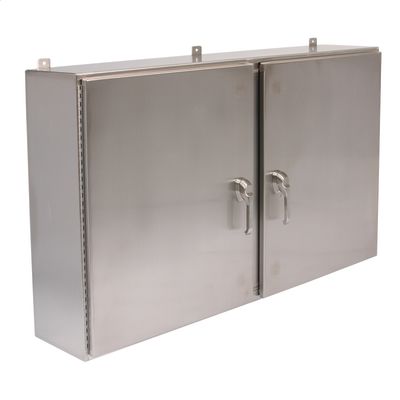

WIEGMANN SSN4424212WF3PT WELDED SEAM ENCLOSURE, 42 IN W X 12 IN D X 42 IN H, NEMA 3R/4/4X/12, 304 STAINLESS STEEL
Enclosure General Purpose
7173165
SSN4424212WF3PT
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 21168
- Color: Silver
- Cover Type: Continuous Hinged
- Depth: 12
- Finish: Smooth Grained
- Height: 42
- Lock: 3-Point 316L Stainless Steel Padlocking Handle
- Material: 304 Stainless Steel
- Mounting Type: External Feet/Wall
- Nema Rating: NEMA 3R/4/4X/12
- Panel Size: 39 x 39
- Series: SSN4-WF3PT
- Type: Welded Seam
- Width: 42
Wiegmann Enclosure, Welded Seam, Series: SSN4-WF3PT, 42 in Width, 12 in Depth, 42 in Height, NEMA 3R/4/4X/12, Continuous Hinged Cover, 39 x 39 in Panel, Lock: 3-Point 316L Stainless Steel Padlocking Handle, 21168 cu-in, External Feet/Wall Mount, 304 Stainless Steel, Smooth Grained, Silver
- Features
- Bodies and doors fabricated from 14 ga 304 stainless steel
- Continuously welded seams ground smooth, no holes or knockouts
- Body stiffeners are provided in larger enclosures for extra rigidity
- Rolled lip around all sides of enclosure opening is provided to exclude liquids and contaminants
- Two independent doors with removable center post
- Doors are removable by pulling heavy gauge stainless continuous hinge pin
- Doors are sealed with a poured in place polyurethane gasket
- Collar studs are provided for mounting
- External mounting feet are provided for mounting enclosures
- Grounding provisions provided
- Removable print pocket is provided
