Hubbell Wiegmann SSN4D747212

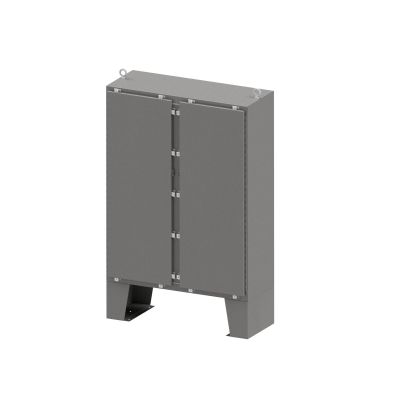

WIEGMANN SSN4D747212 2-DOOR ENCLOSURE, 72.12 IN W X 12.12 IN D X 74.12 IN H, NEMA 4X, 304 STAINLESS STEEL
Enclosure General Purpose
6985952
SSN4D747212
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 64787.877
- Color: Silver
- Cover Type: Continuous Hinged
- Depth: 12.12
- Height: 74.12
- Lock: Clamp/Hasp and Staple
- Material: 304 Stainless Steel
- Mounting Type: Floor
- Nema Rating: NEMA 4X
- Series: SSN4D
- Type: 2-Door
- Width: 72.12
Wiegmann Enclosure, 2-Door, Series: SSN4D, 72.12 in Width, 12.12 in Depth, 74.12 in Height, NEMA 4X, Continuous Hinged Cover, Lock: Clamp/Hasp and Staple, 64787.877 cu-in, Floor Mount, 304 Stainless Steel, Silver
- Features
- Bodies and doors fabricated from 12 ga 304 stainless steel
- Continuously welded seams ground smooth, no holes or knockouts
- Rolled lip around three sides of door and along top of enclosures opening excludes liquids and contaminants from entering
- Quick and easy to operate stainless steel door clamps around three sides of doors are provided
- Doors are removable by pulling stainless steel continuous hinged pin
- Hasp and staple are provided for padlocking
- Standard 12 in H floor kits are welded to bottom of enclosure
- Heavy duty removable lifting eyes
- Easily removable center post permits easy panel installations
- Doors are sealed with poured in place polyurethane gasket
- Grounding provisions provided
- Continuously welded seams construction
