Hubbell Wiegmann WA101006GIE

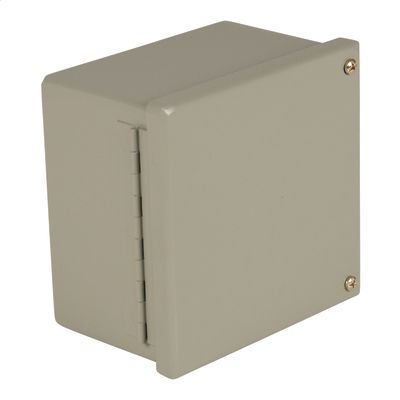

WIEGMANN WA101006GIE WELDED SEAM ENCLOSURE, 10 IN W X 6 IN D X 10 IN H, NEMA 12/13, CARBON STEEL
Enclosure General Purpose
4293479
WA101006GIE
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 600
- Color: Gray
- Cover Type: Hinged Screw
- Depth: 6
- Finish: Textured/Polyester Powder Coated
- Height: 10
- Material: Carbon Steel
- Mounting Type: Wall
- Nema Rating: NEMA 12/13
- Panel Size: 8-1/2 x 8-1/2
- Series: WA-GIE
- Type: Welded Seam
- Width: 10
Wiegmann, WA101006GIE, Enclosure, Welded Seam, Series: WA-GIE, 10 in Width, 6 in Depth, 10 in Height, NEMA 12/13 NEMA Rating, Hinged Screw Cover, 8-1/2 x 8-1/2 in Panel, 600 cu-in Capacity, Wall Mounting, Carbon Steel, Textured/Polyester Powder Coated, Gray
- Features
- Fabricated from 14 ga carbon steel
- Continuously welded seams ground smooth, no holes or knockouts
- Lids are sealed with closed cell oil-resistant neoprene gasket
- Cover is secured by continuous hinge
- Captivated door screws thread into sealed wells
- No mounting feet or mounting holes are provided
- Weldnuts are provided for mounting
- Grounding provisions provided
