Hubbell Wiegmann WA426012WF

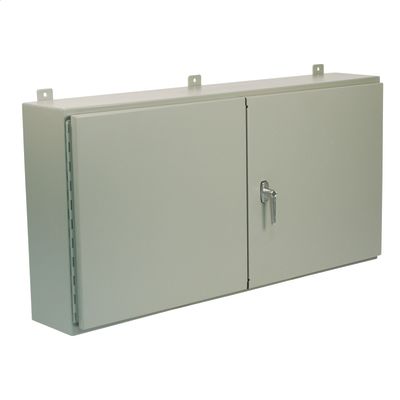

WIEGMANN WA426012WF 2-DOOR SEAM WELDED ENCLOSURE, 60 IN W X 12 IN D X 42 IN H, NEMA 12, CARBON STEEL
Enclosure General Purpose
4292910
WA426012WF
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 30240
- Color: Gray
- Cover Type: Continuous Hinged
- Depth: 12
- Finish: Textured/Polyester Powder Coated
- Height: 42
- Lock: 3-Point Latch
- Material: Carbon Steel
- Mounting Type: External Feet/Wall
- Nema Rating: NEMA 12
- Panel Size: 38 x 56
- Series: WA-WF
- Type: 2-Door Seam Welded
- Width: 60
Wiegmann Enclosure, 2-Door Seam Welded, Series: WA-WF, 60 in Width, 12 in Depth, 42 in Height, NEMA 12, Continuous Hinged Cover, 38 x 56 in Panel, Lock: 3-Point Latch, 30240 cu-in, External Feet/Wall Mount, Carbon Steel, Textured/Polyester Powder Coated, Gray
- Features
- Bodies and doors fabricated from 14 ga carbon steel
- Continuously welded seams ground smooth, no holes or knockouts
- Body stiffeners are added for extra rigidity
- Rolled lip around all sides of enclosure opening is provided to exclude liquids and contaminants
- Special overlapping door design eliminates need for center post
- Three-point latching mechanism operates with an oiltight locking handle
- Doors are removable by pulling heavy gauge continuous hinge pin
- Doors are sealed with closed cell neoprene gasket
- Collar studs provided for mounting
- External mounting feet are provided for mounting enclosures
- Grounding provisions provided
- Print pocket is provided
