Hubbell Wiegmann WA723624SSFSN43PT

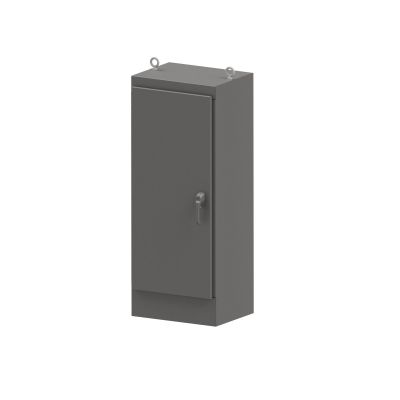

WIEGMANN WA723624SSFSN43PT 1-DOOR ENCLOSURE, 36.06 IN W X 24.06 IN D X 72.06 IN H, NEMA 4X, 304 STAINLESS STEEL
Enclosure General Purpose
7610364
WA723624SSFSN43PT
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 62519.515
- Color: Silver
- Cover Type: Continuous Hinged
- Depth: 24.06
- Height: 72.06
- Lock: 3-Point Padlock Vault Handle
- Material: 304 Stainless Steel
- Mounting Type: Freestanding
- Nema Rating: NEMA 4X
- Series: WA-SSFSN43PT
- Type: 1-Door
- Width: 36.06
Wiegmann Enclosure, 1-Door, Series: WA-SSFSN43PT, 36.06 in Width, 24.06 in Depth, 72.06 in Height, NEMA 4X, Continuous Hinged Cover, Lock: 3-Point Padlock Vault Handle, 62519.515 cu-in, Freestanding Mount, 304 Stainless Steel, Silver
- Features
- Bodies and doors fabricated from 12 ga 304 stainless steel
- Continuously welded seams ground smooth, no holes or knockouts
- Uni-strut mounting channels are welded horizontally to interior body sides, top, bottom and center
- Optional swing, half, full and rack panels can be mounted anywhere along "Uni-strut" channel
- Rolled lip around three sides of door and along top of enclosures opening excludes liquids and contaminants from entering
- Heavy gauge continuous hinge
- Doors are removable by pulling stainless steel continuous hinged pin
- Heavy duty removable lifting eyes
- Doors are sealed with poured in place polyurethane gasket
- Grounding provisions provided
- Continuously welded seams construction
