Hubbell Wiegmann WA724824FSDSS

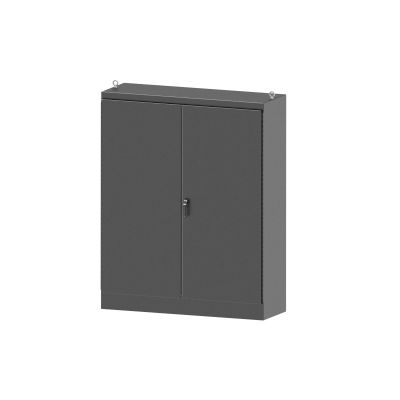

WIEGMANN WA724824FSDSS 2-DOOR ENCLOSURE, 48.12 IN W X 24.12 IN D X 72.12 IN H, NEMA 12, 304 STAINLESS STEEL
Enclosure General Purpose
4944754
WA724824FSDSS
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 83706.395
- Color: Silver
- Cover Type: Continuous Hinged
- Depth: 24.12
- Height: 72.12
- Lock: 3-Point Latch/Oiltight Keylock Handle
- Material: 304 Stainless Steel
- Mounting Type: Freestanding
- Nema Rating: NEMA 12
- Series: WA-FSDSS
- Type: 2-Door
- Width: 48.12
Wiegmann Enclosure, 2-Door, Series: WA-FSDSS, 48.12 in Width, 24.12 in Depth, 72.12 in Height, NEMA 12, Continuous Hinged Cover, Lock: 3-Point Latch/Oiltight Keylock Handle, 83706.395 cu-in, Freestanding Mount, 304 Stainless Steel, Silver
- Features
- Fabricated from 10 ga 304 stainless steel
- Continuously welded seams ground smooth, no holes or knockouts
- Heavy duty lifting eyes for easy handling
- Heavy gauge continuous hinges are provided to secure door
- Uni-strut mounting channels are welded horizontally to interior body sides and top, bottom and center to allow back panels to be positioned in enclosure
- Optional swing, half, full and rack panels can be mounted anywhere along "Uni-strut" channel
- Doors are sealed with poured in place polyurethane gasket
- Grounding provisions provided
- Continuously welded seams construction
