Hubbell Wiegmann WA72X7324U

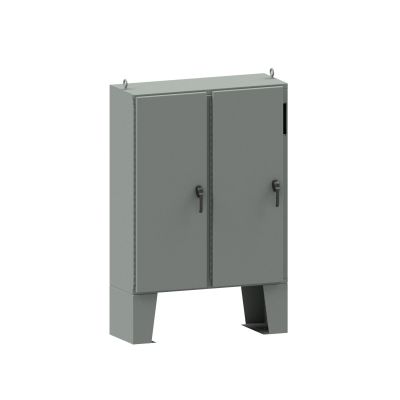

N12 Two Door Floor-Mount Right Flanged Disconnect 72X73X24 Carbon Steel - Gray
Supporting Information
- FTC rolled lip around all sides of enclosure opening excludes liquids and contaminants|Unless specified, the right door is considered to be the "Master" door on the "Right Flange" mount enclosures|A mechanical interlock is provided and prevents the slave door from opening before opening the master door|Disconnects come with a universal cutout which provides mounting for most disconnect operators by using operator adapters|Bodies and doors fabricated from 10 ga steel|Doors are sealed with polyurethane poured in place gasket|Removable center post permits easy panel installation|Body stiffeners provided for extra rigidity|Seams are continuously welded and ground smooth|Punching in right flange (WAXU) or center post (WACPXU) to house the following disconnect operating handles with appropriate adaptor plate, Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361 and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class Class9422 variable depth and cable mechanisms|Heavy duty three-point padlocking handles on all doors|Heavy duty lifting eyes and provisions for fluorescent lighting are provided|Panel supports|Heavy gauge continuous hinges are provided to secure door
- Bodies and doors fabricated from 10 ga steel
- Seams are continuously welded and ground smooth
- Body stiffeners provided for extra rigidity
- Heavy gauge continuous hinges are provided to secure door
- Heavy duty three-point padlocking handles on all doors
- Print pocket is provided
- 15 in floor stands are welded to enclosure
- Doors are sealed with polyurethane poured in place gasket
- Heavy duty lifting eyes and provisions for fluorescent lighting are provided
- Panel supports
- Grounding provisions provided
- Unless specified, the right door is considered to be the "Master" door on the "Right Flange" mount enclosures
- A mechanical interlock is provided and prevents the slave door from opening before opening the master door
- Disconnects come with a universal cutout which provides mounting for most disconnect operators by using operator adapters
- Removable center post permits easy panel installation
- FTC rolled lip around all sides of enclosure opening excludes liquids and contaminants
- Brand: Hubbell WiegmannCapacity: 128361.646Color: GrayCover Type: Continuous HingedDepth: 24.13Finish: Textured/Polyester Powder CoatedHeight: 72Lock: 3-Point Latch/Padlock HandleMaterial: Carbon SteelMounting Type: Floor/Right FlangeNema Rating: NEMA 12
