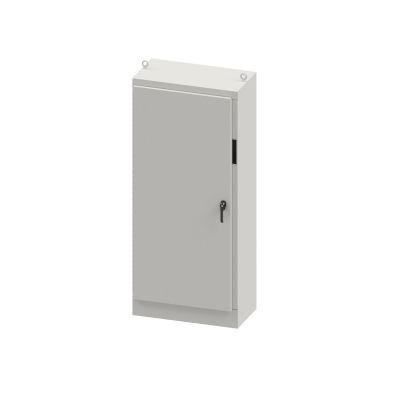

Hubbell Wiegmann WA72XM3318U
N12 Single Door Right Flanged Disconncet 72X33.5X18 Carbon Steel - Gray
Supporting Information
- Unless specified, the far right door is considered to be the Master door|Heavy duty lifting eyes and provisions for fluorescent lighting are provided|Panel supports|Bodies and doors fabricated from 10 ga steel|Doors can be closed in any order|Center posts are removable to permit easy panel installation|Print pocket is provided|All other doors are considered slave doors|Removable 10 ga steel back panels are included and mounted on collar studs|Heavy gauge continuous hinges are provided to secure door|Three-point padlocking handles on all doors|Punching in right flange to house the following disconnect operating handles with appropriate adaptor plate, Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class 9422 variable depth and cable mechanisms|The mechanical interlock is activated by the master door which prevents the slave door from being opened first|FTC rolled lip around all sides of enclosure opening excludes liquids and contaminants|Doors are sealed with polyurethane poured in place gasket|Body stiffeners provided for extra rigidity|Seams are continuously welded and ground smooth
- Bodies and doors fabricated from 10 ga steel
- Removable 10 ga steel back panels are included and mounted on collar studs
- Seams are continuously welded and ground smooth
- Heavy duty lifting eyes and provisions for fluorescent lighting are provided
- Body stiffeners provided for extra rigidity
- Heavy gauge continuous hinges are provided to secure door
- Three-point padlocking handles on all doors
- Panel supports
- Center posts are removable to permit easy panel installation
- Print pocket is provided
- Grounding provisions provided
- Doors are sealed with polyurethane poured in place gasket
- Unless specified, the far right door is considered to be the "Master" door
- All other doors are considered slave doors
- The mechanical interlock is activated by the master door which prevents the slave door from being opened first
- Doors can be closed in any order
- FTC rolled lip around all sides of enclosure opening excludes liquids and contaminants
- Brand: Hubbell WiegmannColor: GrayCover Type: Continuous HingedDepth: 18.13Finish: Textured/Polyester Powder Coated
