nVent Hoffman LHC151512SS6

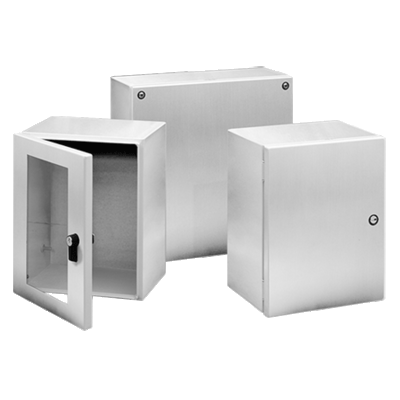

nVent HOFFMAN INLINE™ LHC151512SS6 A54S Instrumentation Enclosure, 150 mm L x 150 mm W x 120 mm D, NEMA 4X/IP66 NEMA Rating, 316L Stainless Steel
Enclosure General Purpose
7068909
LHC151512SS6
nVent Hoffman
$0.00
/ ea
- Cover Type: Solid/Hinged
- Depth: 120
- Finish: Smooth Brushed
- Length: 150
- Lock: Quarter Turn Slotted Latch
- Material: 316L Stainless Steel
- Mounting Type: Wall
- Nema Rating: NEMA 4X/IP66
- Panel Size: 131 x 131
- Series: A54S
- Width: 150
nVent HOFFMAN INLINE Instrumentation Enclosure, Series: A54S, 150 mm Length, 150 mm Width, 120 mm Depth, NEMA 4X/IP66, Solid/Hinged Cover, 131 x 131 mm Panel, Lock: Quarter Turn Slotted Latch, Wall Mount, 316L Stainless Steel, Smooth Brushed
- Features
- Seams continuously welded and ground smooth
- External formed body flange trough
- Large perimeter body opening
- Seamless foam in place gasket
- M6 bonding provision on cover, M6 ground stud in body
- Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall mounting holes
- 180 deg door opening
- Removable type 316 stainless steel hinge pins
- Standard self-grounding, slotted, quarter-turn type 316 stainless steel latch system with double seal
