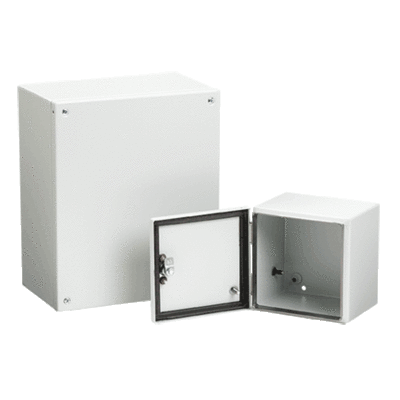

nVent Hoffman LHC353020EMC
nVent HOFFMAN INLINE™ LHC353020EMC A53 Type 1 Instrumentation EMC Enclosure, 350 mm L x 300 mm W x 200 mm D, NEMA 1/IP40 NEMA Rating, Steel
Enclosure General Purpose
7244694
LHC353020EMC
nVent Hoffman
$0.00
/ ea
- Color: Light Gray
- Cover Type: Hinged
- Depth: 200
- Finish: Polyester Powder Painted
- Length: 350
- Lock: Quarter Turn Latch
- Material: Steel
- Mounting Type: Wall
- Nema Rating: NEMA 1/IP40
- Panel Size: 13.03 x 11.06
- Series: A53
- Type: Type 1
- Width: 300
InLine EMC Enclosure Hinge Cover Type 1, 350x300x200mm, Light Gray, Mild Steel
- Features
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Bonding provision on cover and body
- Metalized non-woven fabric EMI/RFI material covering UL94HP rated urethane foam gasket
- Plated interior surfaces for gasket contact areas and conduit entries
- Installation instructions
- Shielding effectiveness greater than 50 dB at 1 GHz
- INLINE™ EMC screw cover enclosures captivated cover screws with sealing bushings
- Integral gasket compression stops
- INLINE™ EMC hinged door enclosures door opens 180 deg
- Removable hinged door
- Self-grounding, slotted quarter-turn latch
