nVent Hoffman LSC353020SS6

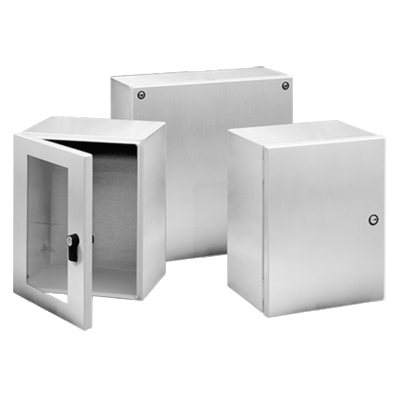

nVent HOFFMAN INLINE™ LSC353020SS6 A54S Instrumentation Enclosure, 350 mm L x 300 mm W x 200 mm D, NEMA 4X/IP66 NEMA Rating, 316L Stainless Steel
Enclosure General Purpose
1554776
LSC353020SS6
nVent Hoffman
$0.00
/ ea
- Cover Type: Screw/Solid
- Depth: 200
- Finish: Smooth Brushed
- Length: 350
- Material: 316L Stainless Steel
- Mounting Type: Wall
- Nema Rating: NEMA 4X/IP66
- Panel Size: 331 x 281
- Series: A54S
- Width: 300
nVent HOFFMAN INLINE Instrumentation Enclosure, Series: A54S, 350 mm Length, 300 mm Width, 200 mm Depth, NEMA 4X/IP66, Screw/Solid Cover, 331 x 281 mm Panel, Wall Mount, 316L Stainless Steel, Smooth Brushed
- Features
- Seams continuously welded and ground smooth
- External formed body flange trough
- Large perimeter body opening
- Seamless foam in place gasket
- M6 bonding provision on cover, M6 ground stud in body
- Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall mounting holes
- Captivated type 316 stainless steel cover screws with sealing bushings made of a durable composite material
- Integral compression stops maintain optimal gasket compression
