nVent Hoffman MAD0608030R5

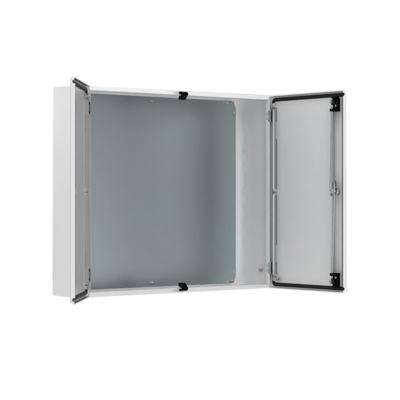

nVent HOFFMAN Wall Mount Enclosure, 2-Door, Series: MAD, 800 mm Width, 300 mm Depth, 600 mm Height, NEMA 12/13/IK10/IP55 NEMA Rating, 750 mm W x 570 mm H Panel, Lock: 3-Point Espagnolette, Wall Mounting, Mild Steel, Powder Coated, Light Gray
Supporting Information
- Body - Folded and seam welded|Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter x 2 mm depressions, to allow air circulation around the rear part of the enclosure|Door - Surface mounted with 130 deg opening|Concealed removable hinges with captive pin|Inner M6 welded studs to mount door profiles MMDP|Sealing is ensured by an injected one piece polyurethane gasket|Lock - Customized lock with double-bit for easy opening of the door|Other inserts are available as an accessory|Mounting plate - The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment|On the top and bottom there are holes to facilitate cable fixing|All sides, from 800 mm and above, are strengthened by folded edges|By using the AMG accessory, the mounting plate position can be adjusted to any depth|Gland Plate Opening - Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier|For outdoor installation, the use of a rain hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended
- Brand: nVent Hoffman
