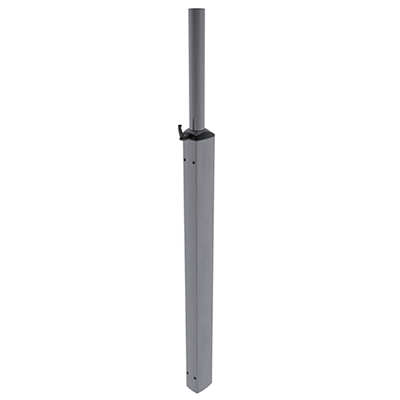

nVent Hoffman S2M10VP77
Hoffman SYSPEND Pedestal Tube, Vertical Motion, Series: CS4, 3.15 x 4.13 x 48.43 in, For Use With: SYSPEND 281-MAX Suspension System, Aluminum
Supporting Information
- Adjustable from 1130 mm (44.49 in ) to 1380 mm (54.33 in ) with internal gas springs|Four models support loads ranging from 11 to 77 lb (4.9 to 34.9 kg)|Height is fixed in place at any position by locking handle|Cables are separated from gas springs inside the tube|Can be attached to Small Pedestal Base, Vertical Wall Joint, Wall Flange, Rotary Base, Elbow or Rotatable Elbow|Tube cannot be inverted for overhead mounting on the enclosure
- Height adjustable tubes allow enclosure to be positioned at the optimal viewing height for different operators
- Requires the 48 mm round tube flange coupling (S2MFC48) and adapter (S2MA48) for attachment to Hoffman enclosures with a 60 x 60 mm hole pattern
- Brand: nVent HoffmanMaterial: AluminumSeries: CS4Size: 3.15 x 4.13 x 48.43Suitable For Use With: SYSPEND™ 281-MAX Suspension SystemType: Vertical Motion
