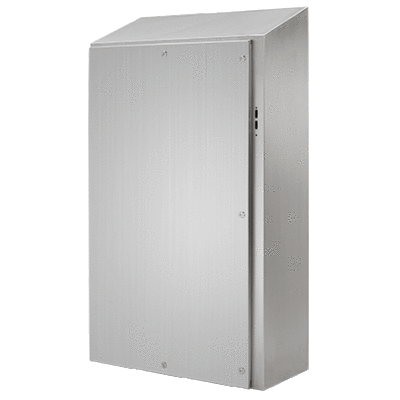

nVent Hoffman WS24HS2508SS
nVent HOFFMAN WATERSHED Disconnect Enclosure, Series: WS1D, 24 in Length, 25 in Width, 8 in Depth, NEMA 4X/IP66, Bullet Hinged/Lift-Off Cover, Lock: Quarter Turn Slotted Latch, Wall Mount, 304 Stainless Steel, Brushed
Supporting Information
- Specifically designed for type 4x food and beverage industry, indirect contact zone applications|Seams continuously welded and ground smooth|Hinged side of door has provisions to allow direct flushing of hinge area|20 deg sloped top|97 deg door opening|Door edges are sloped 20 deg at top and bottom|Slanted flange trough collar along the top edge of the enclosure opening
- 14 ga type 304 stainless steel, seams continuously welded and ground smooth
- Smooth type 304 stainless steel lift-off bullet-style hinges, hinges are shielded by door edges
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20 deg sloped top
- 170 deg door opening
- Door edges are sloped 20 deg at top and bottom
- Slanted flange trough collar along the top edge of the enclosure opening
- Stainless steel quarter-turn latches with flush slotted insert
- Seamless foam in place gasket
- Self-grounding latch system
- Bonding provision on door, grounding stud on body
- Preferred cutout on right flange provides mounting for most disconnect operators
- Furnished hardware kit consists of panel mounting nuts, grounding hardware and sealing washers for wall mounting holes
- Preferred cutout
- Brand: nVent HoffmanCover Type: Bullet Hinged/Lift-OffDepth: 8Finish: Brushed
