nVent Hoffman WS62XM6312SS

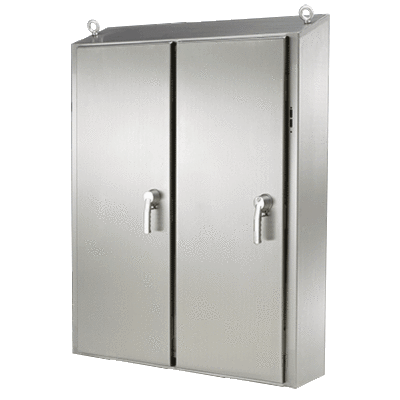

nVent HOFFMAN WATERSHED Disconnect Enclosure, Series: WS2D, 62 in Length, 63 in Width, 12 in Depth, NEMA 4X/IP66, Bullet Hinged/Lift-Off Cover, Lock: 3-Point Latch/Padlock Handle, Freestanding Mount, 304 Stainless Steel, Brushed
Supporting Information
- Specifically designed for type 4x food and beverage industry, indirect contact zone applications|Seams continuously welded and ground smooth|Hinged side of door has provisions to allow direct flushing of hinge area|20 deg sloped top facilitates runoff of water and cleaning solutions and prohibits placement of objects on top of enclosure|97 deg door opening|Door edges are sloped 20 deg at top and bottom edges to facilitate runoff|Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening|Heavy-duty three-point latching mechanism operated by a Type 316 stainless steel PowerGlide padlocking handle on all doors
- Manufactured from 12 ga 304 stainless steel, back is 10 ga, seams continuously welded and ground smooth
- Smooth type 304 stainless steel lift-off bullet-style hinges, hinges are shielded by door edges
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20 deg sloped top facilitates runoff of water and cleaning solutions and prohibits placement of objects on top of enclosure
- 170 deg door opening
- Door edges are sloped 20 deg at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Heavy duty three point latching mechanism operated by type 316 stainless steel POWERGLIDE™ padlocking handle on all doors
- Master door has POWERGLIDE™ handle with integral screwdriver defeater
- Mechanical interlock activated by master door prevents slave doors from being opened first, doors can be closed in any order
- Master door is far right hand door on all enclosures
- Seamless foam in place one-piece gasket provides an oil-tight, watertight and dust tight seal against contaminants
- Bonding provision on door, grounding stud on body
- Accessory mounting channel provided in enclosure top
- Heavy duty lifting eyes are 316 stainless steel
- Removable center post permits easy panel installation
- Preferred cutout on right flange provides mounting for most disconnect operators
- Furnished hardware kit consists of panel mounting nuts, grounding hardware and hole seals for bottom mounting holes, no 4 Brushed
- Brand: nVent HoffmanCover Type: Bullet Hinged/Lift-OffDepth: 12Finish: BrushedLength: 62Lock: 3-Point Latch/Padlock HandleMaterial: 304 Stainless SteelMounting Type: FreestandingNema Rating: NEMA 4X/IP66Series: WS2DWidth: 63
