Rittal 8018699

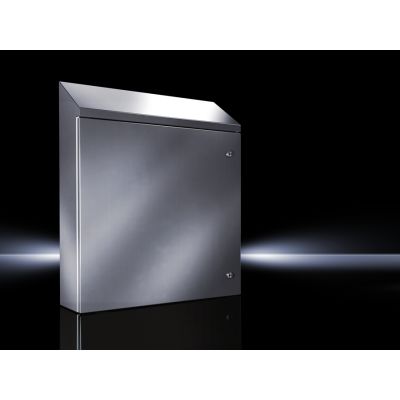

Rittal 8018699 WM Series Compact Non-Disconnect Enclosure With Roof Slope, 24 in W x 8.3 in D x 23 in H, NEMA 1/12/3R/4X/IP66 NEMA Rating, 304 Stainless Steel
Enclosure General Purpose
7288862
8018699
Rittal
$0.00
/ ea
- Color: Light Gray
- Depth: 8.3
- Finish: Brushed
- Height: 23
- Insulation: Foamed-In PU Seal
- Lock: Quarter-Turn
- Material: 304 Stainless Steel
- Mounting Type: Wall
- Nema Rating: NEMA 1/12/3R/4X/IP66
- Panel Size: 22 in W x 22 in H
- Series: WM Series
- Type: Compact Non-Disconnect
- Width: 24
Rittal Enclosure, Compact Non-Disconnect, Series: WM Series, 24 in Width, 8.3 in Depth, 23 in Height, NEMA 1/12/3R/4X/IP66 NEMA Rating, 22 in W x 22 in H Panel, Lock: Quarter-Turn, Foamed-In PU Seal Insulation, Wall Mounting, 304 Stainless Steel, Brushed, Light Gray
- Features
- single-piece construction
- Feature a stylish, modern design that safely houses more components in a smaller space
- Multi-fold single piece body construction for outstanding strength and stability with fewer welds
- Powder coated with RAL 7035 light grey over an industry exclusive electrophoretic dip-coat powder paint primer for complete coverage and protection of the enclosure surface
- Flange collar enclosure opening and seamless foamed-in place gasketing create a knife edge seal for tight, secure protection against contaminates and dust
- 20 deg overhanging slope top
