Rittal 8018708

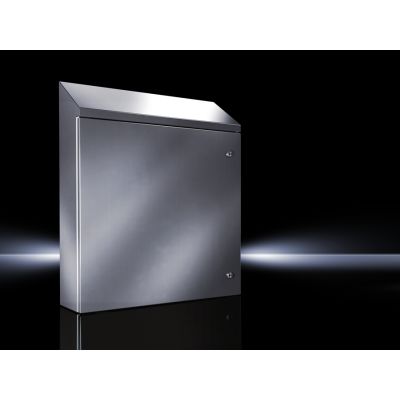

Rittal 8018708 WM Series Compact Enclosure With Roof Slope, 35 in W x 16 in D x 47 in H, NEMA 4X NEMA Rating, 304 Stainless Steel
Enclosure General Purpose
7183207
8018708
Rittal
$0.00
/ ea
- Cover Type: Hinged
- Depth: 16
- Finish: Brushed
- Height: 47
- Insulation: Foamed-In PU Seal
- Lock: Quarter-Turn Latch
- Material: 304 Stainless Steel
- Mounting Type: Wall
- Nema Rating: NEMA 4X
- Panel Size: 45 x 33
- Series: WM Series
- Type: Compact
- Width: 35
Rittal Enclosure, Compact, Series: WM Series, 35 in Width, 16 in Depth, 47 in Height, NEMA 4X NEMA Rating, Hinged Cover, 45 x 33 in Panel, Lock: Quarter-Turn Latch, Foamed-In PU Seal Insulation, Wall Mounting, 304 Stainless Steel, Brushed
- Features
- single-piece welded cold rolled steel body
- Left hand hinged door (the carbon steel single door configuration is reversible)
- Single door enclosures less than 20 in in height have one 1/4 turn latch with screwdriver insert
- Single door enclosures 20 to 40 in in height have two 1/4 turn latches with screwdriver inserts
- Single door enclosures greater than or equal to 42 in in height have a three-point latching tool to open L-handle
- Double door and disconnect enclosures have a three-point latching tool to open L-handle
- Wall mounting holes (carbon steel versions), blind riv-nuts (stainless steel versions)
- Foamed-in place gasket
- Slope top enclosures have a 20 deg sloped roof that overhangs the door
- Stainless steel 1.4301 (AISI 304) lock insert
- Brushed surface
- The WMS slope top wall mount enclosure is designed for any environment that requires frequent washdowns
- The 20 deg overhanging sloped roof prevents water from accumulating on top of the enclosure and door opening
- NO 4 smooth brushed finish
