Rittal 8450680

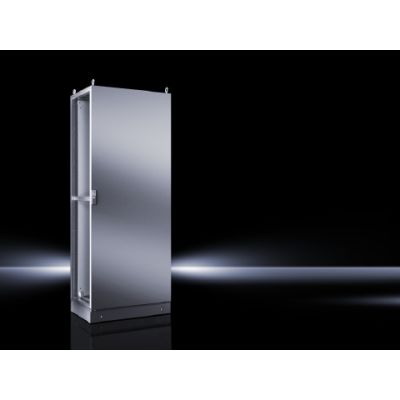

Rittal 8450680 TS/TS8 Compact Baying Enclosure System With Single Door, 31 in W x 24 in D, NEMA 3R/4X/IP66/IK09 NEMA Rating, Stainless Steel
Enclosure General Purpose
7048286 8450680
Rittal
$0.00 / ea

Rittal 8450680
  • Capacity: 1400
  • Depth: 24
  • Finish: Uncoated/Exterior Brushed/Grain 400
  • Lock: 4-Point
  • Material: Stainless Steel
  • Mounting Type: Freestanding
  • Nema Rating: NEMA 3R/4X/IP66/IK09
  • Series: TS/TS8
  • Type: Compact
  • Width: 31
Rittal Baying Enclosure System, Compact, Series: TS/TS8, 31 in Width, 24 in Depth, NEMA 3R/4X/IP66/IK09, 4-Point Lock, 1400 kg, Freestanding Mount, Stainless Steel, Uncoated/Exterior Brushed/Grain 400
QTY
Add to Wishlist
  • Features
  • Full flexibility with the use of accessories, thanks to a fully symmetrical frame section, with identical accessories for the width and depth
  • High protection category of up to IP66 NEMA 4/4X
  • Bayable on all sides
  • Door hinge is easily swapped to the opposite side without machining
  • Automatic potential equalization via the assembly components with all enclosure panels and gland plates
  • Enclosure has a high load bearing capacity of up to 1400 kg
  • Simple, fast assembly of the mounting plate
  • Slide rails may be removed and installed in the side frame section
  • Effective space utilization by using the inner and outer mounting level of the frame section
  • The integral enclosure protection channel prevents the ingress of dirt and water when the door is opened
  • Maximum space for cable entry with multiple divided gland plates
  • Optimum sealing, 4-point lock system
  • 16-fold tubular frame system, flexible baying options and modular design
